Takeuchi TW60 Series 2

Takeuchi TW60 Series 2

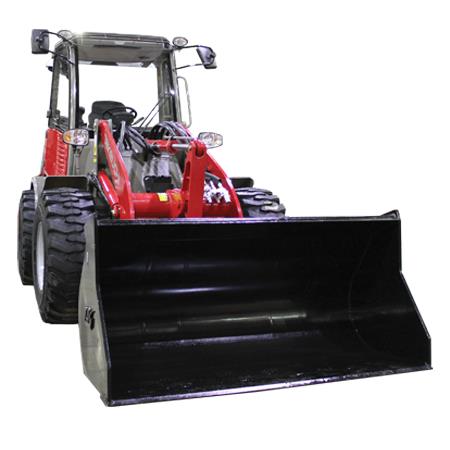

New Takeuchi TW60 Series 2 Wheel Loader for Sale

Compact and nimble, the TW60 Series 2 is well equipped to handle a wide range of jobs and attachments. A universal hydraulic skid steer coupler enables the TW60 Series 2 to utilize a wide range of skid steer attachments, and it is easily controlled from the operator’s station. The quiet and turbocharged engine is equipped with a DOC/DPF exhaust aftertreatment system and produces 61 horsepower (45.6 kW) for excellent power and performance around the job site. 100% locking differentials can be engaged at low speeds allowing the operator to work in varied terrain and extreme conditions. Daily maintenance and inspections are simple to perform on the TW60 Series 2 due to the engine hood that opens overhead providing access to key inspection points and grease points that are easily accessed on the loader and articulation points.
Dimensions
Height 8’6.4”
12’4.3” (operating)
Weight 10,692 lbs.
Wheelbase 6’6.7”
Ground Clearance 20.5”
Turning Radius 12’1.3” (outside)
6’5.3” (inside)
Length w/ Bucket 17’7.1”
Width wo/Bucket 6’3”
Engine
Engine Make Yanmar
Engine Model 4TNV86CHT-M
Gross Horsepower 61.2 HP
Displacement 128 cu in
Fuel Tank Capacity 16.2 Gallons
Lubrication System Front Axle: 4.9 qt.
Rear Axle: 4.6 qt.
Drivetrain
Torque 146 ft-lb
Hydraulic
Auxiliary Flow 15.2 GPM
Hydraulic System Pressure 3,408 PSI
Operational
Bucket Width 76.5”
Dump Height 7’5” (fully raised)
Tipping Load 6,689 lbs. (Straight)
5,906 lbs. (Full Turn)
Bucket Capacity 1.19 cu yd
Height to Bucket Pin 10’9.7”
Bucket Breakout Force 6,294 lbs.
Travel Speed - Forward 4-12.4 MPH
17.4 MPH (Optional High Speed)
Dump Angle 46°
Clearance Height 9’8.7” (bucket)
Max. Reach 2’2.4” (fully raised)
Breakout Force 6,002 lbs. (Lift Arm)
Traction Force 8,818 lbs.
Rollback Angle 43°
Operating Capacity 2,953 lbs.

ENGINE

  • EPA Tier 4 Compliant
  • DOC/DPF Exhaust After Treatment
  • Turbocharged
  • Water Cooled
  • Dual Element Air Cleaner
  • Heavy Duty Radiator and Hydraulic Oil Cooler

OPERATOR’S STATION

  • Enclosed Cab with A/C, Heat, Front and Rear Wipers, Front and Rear Washer, and Rear Window Defrost
  • Deluxe Lighting Packafe for Work, Driving and Signal Lights
  • Elevated Operator’s Station
  • ROPS/FOPS Level 1 Protection
  • Multi-Function Joystick for Machine Direction (FWD/REV), and Loader Controls (Raise, Lower, Curl and Dump)
  • Suspension Seat
  • Large Steps and Grab Handles

DRIVE TRAIN

  • Hydrostatic Drive with 100% Inching Pedal
  • 100% Locking Differentials: Front and Rear
  • Outboard Planetary Drives
  • Two Speed Travel
  • Spring Applied Parking Brake
  • Multi-Wet Disc Brake

ELECTRICAL

  • Electronic Engine Monitoring System includes High Beam Indicator, Turn SIgnal Indicators, High Speed Indicator, Directional Lights Fwd/Rev
  • 12 volt System with 55 amp Alternator
  • Work Lights Front and Rear
  • Driving Lights and Turn Signals
  • Engine Preheat
  • Back-up Alarm

HYDRAULIC & WORKING EQUIPMENT

  • Priority Steering
  • Auxiliary Hydraulic Lines Plumbed to End of Loader Arms
  • Auxiliary Hydraulic Detent
  • Hydraulic System Test Ports
  • Hydraulic Oil Level Sight Gauge
  • Loader Arm Float
  • Heavy Duty Hydraulic SSL Style Quick Attach Coupler
  • Z-Bar Linkage
  • Bucket Float Function
  • Heavy Duty, Self Aligning Loader Bushings with Oversized Pins
  • 76.5" General Purpose Bucket
  • Flat Face Hydraulic Couple Kit with Case Drain and Pressure Release Knob

DRIVE TRAIN

  • High Speed Travel 17.4 mph (28.0 km/h)
  • 15-19.5 Heavy Duty Construction Tire Assembly

HYDRAULIC & WORKING EQUIPMENT

  • Bolt-on Reversible Cutting Edge for 76" Bucket

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Takeuchi
MODEL TW60 Series 2

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Takeuchi TW60 Series 2

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Takeuchi TW60 Series 2 Wheel Loader for Sale

Compact and nimble, the TW60 Series 2 is well equipped to handle a wide range of jobs and attachments. A universal hydraulic skid steer coupler enables the TW60 Series 2 to utilize a wide range of skid steer attachments, and it is easily controlled from the operator’s station. The quiet and turbocharged engine is equipped with a DOC/DPF exhaust aftertreatment system and produces 61 horsepower (45.6 kW) for excellent power and performance around the job site. 100% locking differentials can be engaged at low speeds allowing the operator to work in varied terrain and extreme conditions. Daily maintenance and inspections are simple to perform on the TW60 Series 2 due to the engine hood that opens overhead providing access to key inspection points and grease points that are easily accessed on the loader and articulation points.
GENERAL INFORMATION
Manufacturer
Takeuchi
Model Year
Model
TW60 Series 2
Condition
NEW
Dimensions
Height
8’6.4” 12’4.3” (operating)
Weight
10,692 lbs.
Wheelbase
6’6.7”
Ground Clearance
20.5”
Turning Radius
12’1.3” (outside) 6’5.3” (inside)
Length w/ Bucket
17’7.1”
Width wo/Bucket
6’3”
Engine
Engine Make
Yanmar
Engine Model
4TNV86CHT-M
Gross Horsepower
61.2 HP
Displacement
128 cu in
Fuel Tank Capacity
16.2 Gallons
Lubrication System
Front Axle: 4.9 qt. Rear Axle: 4.6 qt.
Drivetrain
Torque
146 ft-lb
Hydraulic
Auxiliary Flow
15.2 GPM
Hydraulic System Pressure
3,408 PSI
Operational
Bucket Width
76.5”
Dump Height
7’5” (fully raised)
Tipping Load
6,689 lbs. (Straight) 5,906 lbs. (Full Turn)
Bucket Capacity
1.19 cu yd
Height to Bucket Pin
10’9.7”
Bucket Breakout Force
6,294 lbs.
Travel Speed - Forward
4-12.4 MPH 17.4 MPH (Optional High Speed)
Dump Angle
46°
Clearance Height
9’8.7” (bucket)
Max. Reach
2’2.4” (fully raised)
Breakout Force
6,002 lbs. (Lift Arm)
Traction Force
8,818 lbs.
Rollback Angle
43°
Operating Capacity
2,953 lbs.
