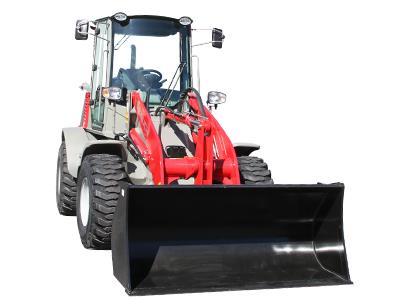

New Takeuchi TW80 Series 3 Wheel Loader for Sale

The TW80 Series 3 features a compact design that is ideal for maneuvering in tight spaces with minimal damage to lawns and other sensitive surfaces. Delivering 73 horsepower, the TW80 Series 3 is equipped with a powerful, turbocharged Deutz engine that is EPA Final Tier 4 compliant. The loader has excellent reach, dump height, and lifting capabilities making it suitable for a wide variety of applications, and the standard hydraulic coupler simplifies attachment exchanges. The operator’s station is elevated and unobstructed for greater visibility and better job site awareness. Excellent power, precise control, lower operational and maintenance costs result in increased productivity and minimal downtime.
Dimensions
Height 8’11.5”
13’10” (operating)
Weight 12,700 lbs.
Wheelbase 7’2.6”
Ground Clearance 1’6.5”
Turning Radius 14’8” (at bucket edge)
13’3” (outside)
6’3” (inside)
Length w/ Bucket 18’3”
Width wo/Bucket 6’9”
Frame Oscillation 12 Degrees Left/12 Degrees Right
Engine
Engine Make Deutz
Engine Model TD2.9L Turbo
Engine Type EPA Final Tier 4
Cylinders 4
Gross Horsepower 73 hp
Displacement 176 cu in
Speed - Foreward Maximum: Road Gear 24.8 mph
Low Range: 4.0 mph
High Range: 12.4 mph
Fuel Consumption 2.6 gal/hr (65% of full load)
Fuel Tank Capacity 26.4 gal
Voltage 12 volts
Amps 95 amps
Rated RPM 2,200 rpm
Lubrication System Front Axle: 5.7 qt.
Rear Axle: 5.4 qt.
Cycles Raise-Full Load: 6.0 seconds
Lower-No Load: 3.8 seconds
Dump-Full Load: 1.2 seconds
Drivetrain
Axles Rigid Axles with outboard planetary reduction
Transmission Type Hydrostatic Drive with 100% Hydraulic Inching Pedal
Torque 192 ft-lb @ 1,800 rpm
Brakes Parking: Spring Applied, Hydraulically Released, Multiple WetFriction Disk
Service: Hydrostatic and Multi WetFriction Disk
Traction Aid 100% Differential lock in front and rear axles
Hydraulic
Hydraulic Tank Capacity Reservoir: 14.0 gal
Hydraulic Flow Flow: 16.4 gal/min
High: 26.0 gal/min
Hydraulic Pressure 3,335 psi
Auxiliary Flow 16.4 GPM (Primary Circuit)
26.0 GPM (Optional Circuit)
Hydraulic System Pressure 3,335 PSI
Operational
Bucket Width 81.5”
Dump Height 8’6” (fully raised)
Tipping Load 9,742 lbs. (Straight)
8,602 lbs. (Full Turn)
Height to Bucket Pin 11’1”
Bucket Breakout Force 13,960 lbs.
Steering 40 Degrees Left/40 Degrees Right
Travel Speed - Forward 4-12.4 MPH
24.8 MPH (Optional High Speed)
Rated Operating Capacity 4,301 lbs.
Rollback @ Ground 48 Degrees (Bucket)
Dump Angle 45°
Boom Type Z-Bar Pattern (Loader Boom Linkage Type)
Clearance Height 9’11” (bucket)
Max. Reach 2’5” (fully raised)
Breakout Force 12,387 lbs. (Lift Arm)
Traction Force 12,049 lbs.
Rollback Angle 48°
Operating Capacity 4,301 lbs.

ENGINE

  • U.S. EPA Final Tier 4
  • DOC Exhaust After Treatment
  • Turbocharged
  • Water Cooled
  • Dual Element Air Cleaner
  • High Capacity Radiator

ELECTRICAL

  • Multi-Informational Monitor
  • 12 volt System with 95 amp Alternator
  • Work Lights: Front and Rear
  • Driving Lights and Turn Signals
  • Directional Lights: Fwd / Rev
  • Engine Preheat
  • Back-up Alarm

DRIVE TRAIN

  • Hydrostatic Drive with 100% Inching Pedal
  • 100% Locking Differentials: Front and Rear
  • Outboard Planetary Drives
  • 2 Speed Travel
  • Spring Applied Parking Brake
  • Multi-Wet Disc Brake
  • Rigid Axles with Outboard Planetary Reduction

HYDRAULIC & WORKING EQUIPMENT

  • Pilot Control
  • Proportional Thumb Wheel for Coupler or Auxiliary Hydraulic Circuit
  • Auxiliary Hydraulic Lines Plumbed to End of Loader Arms
  • Auxiliary Hydraulic Detent
  • Hydraulic Oil Level Sight Gauge
  • High Capacity Hydraulic Oil Cooler
  • Z-Bar Linkage
  • Bucket Float Function
  • Mechanical Bucket Positioning
  • Heavy Duty Hydraulic Bucket Quick Coupler
  • Heavy Duty Self Aligning Loader Bushings with Oversized Pins

OPERATOR'S STATION

  • Enclosed Cab with Air Conditioning, Heat, Front and Rear Wipers, Front and Rear Washers, and Rear Defrost
  • Elevated Operator's Station
  • ROPS / FOPS Protection
  • Deluxe Air Suspension Seat with Arm Rests
  • Multi-Functional Joystick for Machine Direction (FWD/REV) and Loader Controls
  • Large Steps and Grab Handles
  • 2" Retractable Seat Belt

DRIVE TRAIN

  • High Speed Travel 17.4 mph (28.0 km/h)
  • 15-19.5 Heavy Duty Construction Tire Assembly
  • High Speed Road Gear with Ride Control (24.8 mph)

HYDRAULIC & WORKING EQUIPMENT

  • 81.5" General Purpose Bucket (1.3 yrds)
  • Bolt-on Reversible Cutting Edge for 81.5" Bucket
  • High Flow Auxiliary Hydraulics (26.0 gpm)
  • Combo Hitch to Universal SSL Adapter
  • Flat Face Hydraulic Coupler Kit

OPERATOR'S STATION

  • 3" Retractable Seat Belt
