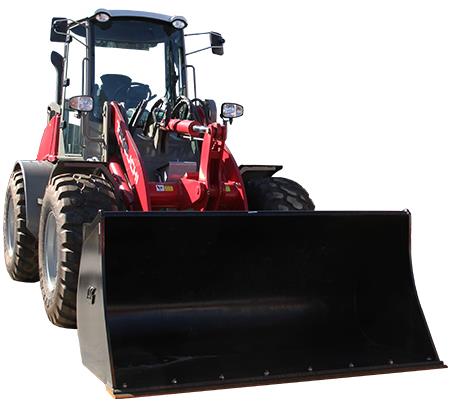

New Takeuchi TW95 Wheel Loader for Sale

Powerful and efficient, the Takeuchi TW95 delivers exceptional performance, comfort, and serviceability.  It is an ideal loader for a wide range of applications including load and carry, snow removal, and feedlots.  The cabin is spacious and features a deluxe high-back air ride seat with heat and armrest, single lever joystick control for all loader functions and directional changes (F-N-R), a proportional thumb wheel for auxiliary hydraulic functions, and rocker switches to control a wide range of machine functions.  A standard hydraulic quick coupler makes changing attachments quick and efficient.

The TW95 is powered by a 114 hp, Deutz TCD 3.6 L4 engine that is Final Tier 4 using an SCR and DOC exhaust after treatment system.  The hydrostatic drive is responsive and delivers excellent power for loading applications, and it also provides dynamic braking, slowing the loader as the operator backs off the throttle.  High-speed road gear is standard equipment and enables the loader to travel at speeds up to 24.8 mph for greater mobility and versatility.  100% locking differentials can be engaged at low speeds to provide maximum tractive effort in the most demanding conditions.  Maintenance and inspections are simple to perform on the TW95 due to the wide opening engine hood that provides access to key daily inspection points.
Dimensions
Height 9’7.4”
13’10” (operating)
Weight 18,188 lbs.
Wheelbase 8’2.4”
Ground Clearance 1’9.2”
Turning Radius 15’1.4” (outside)
7’10” (inside)
Length w/ Bucket 20’5.2”
Width wo/Bucket 7’1.8”
Engine
Engine Make Deutz
Engine Model TD 3.6 L4
Gross Horsepower 114.0 HP
Displacement 176 cu in
Speed - Foreward 4.0 mph-12.4 mph
Gears 24.9 mph (High Speed Road)
Fuel Tank Capacity 31.7 gal
Lubrication System Front Axle: 7.6 qt.
Rear Axle: 7.6 qt.
Emission Standards EPA Final Tier 4
Drivetrain
Torque 339.3 ft-lb
Hydraulic
Auxiliary Flow 26.4 gpm
Hydraulic System Pressure 3,336 PSI
Operational
Bucket Width 95”
Dump Height 9’3.3” (fully raised)
Tipping Load 14,307 lbs. (Straight)
12,652 lbs. (Full Turn)
Bucket Capacity 2.00 cu yd
Height to Bucket Pin 11’10.5”
Bucket Breakout Force 15,873 lbs.
Travel Speed - Forward 4-12.4 MPH
24.9 MPH (Optional High Speed)
Dump Angle 45 degrees
Clearance Height 9’11” (bucket)
Max. Reach 2’8.2 (fully raised)
Breakout Force 18,077 lbs. (Lift Arm)
Traction Force 13,592 lbs.
Rollback Angle 48 degrees
Operating Capacity 6,326 lbs.

ENGINE

  • EPA Final Tier 4 Emission Compliant
  • DOC / SCR Exhaust After Treatment
  • Turbocharged
  • Water Cooled
  • Dual Element Air Cleaner with Restriction Indicator
  • High Capacity Radiator

ELECTRICAL

  • Multi-Informational Monitor
  • 12 volt System with 95 amp Alternator
  • Work Lights: Front and Rear
  • Driving Lights and Turn Signals
  • Directional Lights: Fwd / Rev
  • Engine Preheat
  • Back-up Alarm

DRIVE TRAIN

  • Hydrostatic Drive with 100% Inching Pedal
  • 100% Locking Differentials: Front and Rear
  • Outboard Planetary Drives
  • 2 Speed Travel
  • Spring Applied Parking Brake
  • Multi-Wet Disc Brake
  • High Speed Road Gear with Ride Control (24.9 mph)

HYDRAULIC & WORKING EQUIPMENT

  • Precise and Responsive Pilot Controls
  • Proportional Thumb Wheel Located in Loader Joystick for Auxiliary Hydraulic Circuit
  • Auxiliary Hydraulic Lines Plumbed to End of Loader Arms
  • Auxiliary Hydraulic Detent
  • Hydraulic Oil Level Sight Gauge
  • High Capacity Hydraulic Oil Cooler
  • Auxiliary Hydraulics (26.4 gpm)
  • Z-Bar Linkage
  • Bucket Float Function
  • Mechanical Bucket Positioning
  • Heavy Duty Hydraulic Bucket Quick Coupler
  • Heavy Duty Self Aligning Loader Bushings with Oversized Pins
  • 95" Light Duty Bucket w/ BOE (2.75 yd3)

OPERATOR'S STATION

  • Enclosed Cab with Air Conditioning, Heat, Front and Rear Wipers, Front and Rear Washers, and Rear Defrost
  • ROPS / FOPS Protection
  • 2" Retractable Seat Belt
  • Deluxe Air Suspension Seat with Heat
  • Large Steps and Grab Handles
  • Elevated Operator's Station
  • Multi-Functional Joystick for Machine Direction, Bucket Control, Loader Arms, Diff Lock, High Speed, and Auxiliary Controls

DRIVE TRAIN

  • Heavy Duty Radial Tire Assembly

HYDRAULIC & WORKING EQUIPMENT

  • 95" Light Duty Bucket (8 tooth) (2.62 yd3)
  • HD 48" Pallet Forks and Frame

OPERATOR'S STATION

  • 3" Retractable Seat Belt
