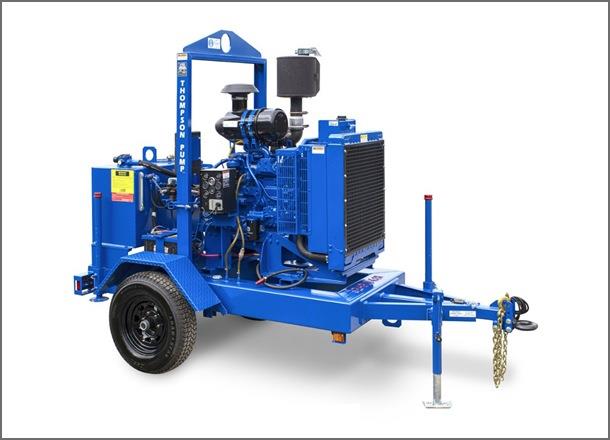

New Thompson Pumps Hydraulic Power Units for Sale Designed to eliminate suction lift limitations in deep manholes or excavations over 25 feet deep, the Hydraulic Submersible pump handles up to 4.25 inch solids and pumps efficiently at heads up to 240 feet. Available with variable speed controls and auto-start, the low oil level/high oil temp shutdown system and third line for seal blow-out protection assure trouble free use and low maintenance costs. FEATURES
MODELS
|
| Dimensions | |
|---|---|
| Weight | 32HPU: 4,600 lbs. 78HPU: 5,480 lbs. |
| Engine | |
|---|---|
| Engine Make | 32HPU: Deutz & Cummins 78HPU: Deere & Cummins |
| Engine Model | 32HPU: Deutz TD3.6L4 & Cummins QSF2.8 78HPU: Deere 4045HFC06 & Cummins QSB4.5 |
| Engine | --32HPU: Deutz: Fuel Economy-0.387 lb-hp-hr with Run Time of 16 Hours Deutz: Fuel Economy-0.366 lb-hp-hr with Run Time of 22 Hours Deutz: Fuel Economy-0.359 lb-hp-hr with Run Time of 31 Hours Cummins: Fuel Economy-0.376 lb-hp-hr with Run Time of 16 Hours Cummins: Fuel Economy-0.369 lb-hp-hr with Run Time of 21 Hours Cummins: Fuel Economy-0.380 lb-hp-hr with Run Time of 29 Hours --78HPU: Deere: Fuel Economy-0.367 lb-hp-hr with Run Time of 9 Hours Deere: Fuel Economy-0.357 lb-hp-hr with Run Time of 10 Hours Deere: Fuel Economy-0.350 lb-hp-hr with Run Time of 15 Hours Cummins: Fuel Economy-0.352 lb-hp-hr with Run Time of 9 Hours Cummins: Fuel Economy-0.344 lb-hp-hr with Run Time of 11 Hours Cummins: Fuel Economy-0.341 lb-hp-hr with Run Time of 16 Hours |
| Horsepower | 32HPU: 74 HP 78HPU: 139 HP (Deere) & 140 HP (Cummins) |
| Fuel Consumption | 32HPU: 3.84 GPH (Deutz)/4.69 GPH (Cummins) 78HPU: 7.33 GPH (Deere)/7.03 GPH (Cummins) |
| Engine Speed | 32HPU: 2,300/1,800/1,300 RPM 78HPU: 2,200/2,000/1,800 RPM |
| Fuel Tank Options | --32HPU: Integral: 62 Gallons; 31 Hours (Deutz)/29 Hours (Cummins) Modular (M): 100 Gallons; 50 Hours (Deutz)/48 Hours (Cummins) --78HPU: Integral: 67 Gallons; 16 Hours (Deere)/16 Hours (Cummins) Modular (M): 114 Gallons; 27 Hours (Deere)/27 Hours (Cummins) |
| Return Filter | 32HPU: 60 GPM at 5 PSI backpressure, 25 micron, in tank mounted with internal bypass at 25 PSI, integral filler/breather 78HPU: 100 GPM at 5 PSI backpressure, 25 micron, in tank mounted with internal bypass at 25 PSI, integral filler/breather |
| Safety Shutdowns | 32HPU: Low hydraulic fluid level; high hydraulic fluid temperature 78HPU: Low hydraulic fluid level; high hydraulic fluid temperature |
| Hydraulic | |
|---|---|
| Control Valve | Needle type |
| Hydraulic Flow | 32HPU: 34 GPM 78HPU: 88 GPM |
| Operating Pressure | 32HPU: 2,800 PSI |
| Hydraulic Coupling | 32HPU: Delivery—1” female Snap-Tite 75 series quick disconnect with dust plug Return—1.25” female Snap-Tite 75 series quick disconnect with dust plug Bypass—.50” female Snap-Tite 75 series quick disconnect with dust plug 78HPU: Delivery—1.25” female Snap-Tite 75 series quick disconnect with dust plug Return—1.50” female Snap-Tite 75 series quick disconnect with dust plug Bypass—0.75” female Snap-Tite 75 series quick disconnect with dust plug |
| Relief Valve | Pump mounted, internally pilot operated, pressure compensated with vent provision and pressure gauge for system diagnostics |
| Operational | |
|---|---|
| Solids Handling | 78HPU: 4.25” |
| Operating Speed | 32HPU: 2,300 RPM 78HPU: 2,200 RPM |
| Max Capacity | 32HPU: 34 GPM 78HPU: 88 GPM |
| Pump Type | 32HPU: HDP30.61, positive displacement, external gear type, single pump, 3.72 in³ displacement. 78HPU: P365A-2.5, positive displacement, external gear type, single pump, 9 in³ displacement. |
| Reservoir | Fabricated steel, with internal baffles, large access port, drain valve, sight glass level and temperature gauge, air vent, sump strainer, and shutoff valve |
| Sump Strainer | 100 mesh spin on type |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Thompson Pumps |
| MODEL | Hydraulic Power Units |
