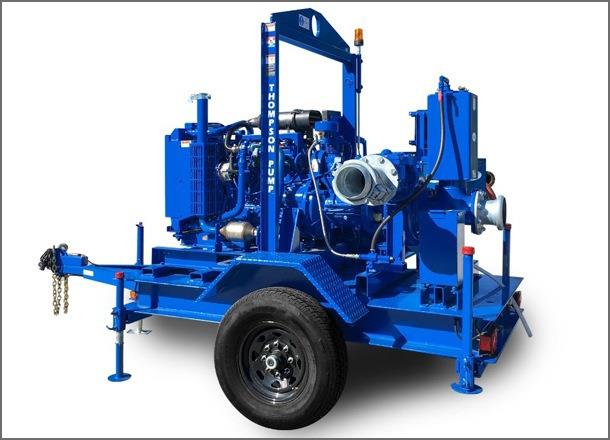

Thompson Pumps JSC Series Enviroprime System High Head Solids Handling Pumps (Dry Prime, Compressor Assisted)

New Thompson Pump for Sale

New Thompson JSC Series Enviroprime System High Head Solids Handling Pumps (Dry Prime, Compressor Assisted) for Sale

The popular JSC Series centrifugal pumps provide automatic priming and large solids handling. The durable construction and the highly efficient pump ends provide longer life and economical operations but most importantly lower fuel costs.

The popular JSC series centrifugal pumps provide automatic self-priming, large solids handling, and features the unique Thompson Enviroprime System®.

With automatic self-priming and up to 4-inch solids handling, the JSC compressor-assisted pump series leads the industry in sewer bypass, emergency response and any high head/high-volume applications. Heavy-duty, dry-priming with auto-start and compact design options, this pump is the ideal solution.

FEATURES

  • ECONOMICAL FUEL COST: Highly efficient pump ends translate to lower fuel costs. Includes diesel and electric motor variations.
  • ENVIROPRIME SYSTEM®: Environmentally friendly system that offers fully automatic priming and re-priming without blow-by.
  • LARGE SOLIDS HANDLING: High capacity and head performance allows JSV pumps to transfer liquids with solids up to 4 inches.
  • DURABLE CONSTRUCTION: Heavy-duty casing and brackets. Stainless steel shaft sleeve and tungsten carbide vs silicone-carbide grease lubricated mechanical seal.

MODELS

  • 4JSCC
  • 4JSCM
  • 6JSCEE
  • 6JSCE
  • 8JSCE
  • 10JSCG
  • 12JSCG
  • 12JSCJ
  • 18JSCJ
  • 18JSCK
Dimensions
Max Head 4JSCC: 215’
4JSCM: 135’
6JSCE: 190’
6JSCEE & 12JSCJ: 110’
8JSCE: 273’
10JSCG: 218’
12JSCG: 340’
18JSCJ: 195’
18JSCK: 130’
Size 4JSCC & 4JSCM: 4”
6JSCE & 6JSCEE: 6”
8JSCE: 8”
10JSCG: 10”
12JSCG & 12JSCJ: 12”
18JSCJ & 18JSCK: 18”
Operational
Solids Handling 4JSCC, 4JSCM, 6JSCE, 6JSCEE, 8JSCE, 10JSCG, 12JSCJ & 18JSCJ: 3”
12JSCG: 3.38”
18JSCK: 4”
Application Sewer bypassing, dewatering, emergency flood response, transfer of liquids with solids
Max Capacity 4JSCC: 1520 GPM
4JSCM: 1350 GPM
6JSCE: 2680 GPM
6JSCEE: 2250 GPM
8JSCE: 3200 GPM
10JSCG: 4100 GPM
12JSCG: 5180 GPM
12JSCJ: 7500 GPM
18JSCJ: 8800 GPM
18JSCK: 10,500 GPM
  • Capable of dry priming and automatic re-priming
  • Flows from 1,200 gpm to 11,000 gpm
  • Large solids handling up to 4 inches
  • Heads from 120 feet to 440 feet and suction lift up to 28 feet
  • Compressor-assisted dry-priming using the exclusive Enviroprime System®
  • Enviroprime System® with automatic priming prevents blow-by of sewage, effluent and waste discharge onto the ground
  • Heavy-duty casing and brackets as well as impeller and wear rings
  • Available with auto-start control and safety shutdown
  • Ductile iron components for longer life
  • Final Tier 4 diesel engines
  • Also available with gasoline, propane, natural gas and electric motors
  • 24-Month Limited warranty covers manufacturing defects in materials and workmanship
  • Lifetime warranty on venturi system
  • Recon: Remote pump operation and monitoring through cellular, satellite and WiFi. Access pump metrics, pull reports and setup alarms through a digital dashboard. Also available with telemetry.
  • Silent Knight®: Sound-attenuated canopy reduces pump sound levels to or below 69 dBA. Fully-insulated, weather-proof and lockable. The Arctic Night® variation is ideal for extremely cold temperatures.
  • Self-Cleaning Impeller: Serrated wearplate shreds apart stringy materials, preventing ragging and reducing pump clogging. Significantly decreases pump maintenance time. Ideal for sewer bypass.
  • Skid Or Trailer Mounted: Most Thompson pumps are available either on a mobile trailer mount or a standard skid mount for more permanent applications.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Thompson Pumps
MODEL JSC Series Enviroprime System High Head Solids Handling Pumps (Dry Prime, Compressor Assisted)
