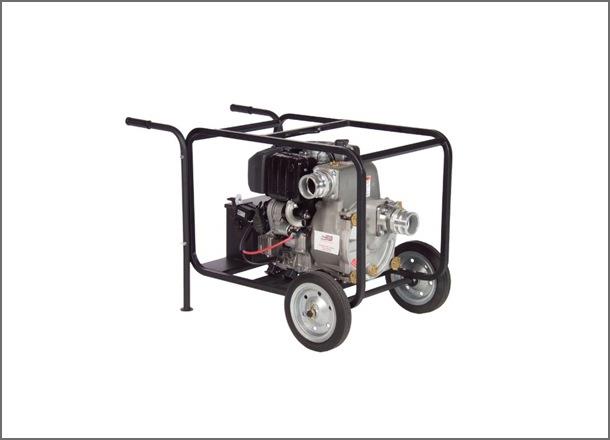

New Thompson Utility Self Priming Trash Pump for Sale Thompson utility trash pumps provide high performance with the mobility of lightweight cast aluminum housing With a replaceable volute, housing, impeller and wear plate, worn parts can be easily replaced in the field, saving time and money. For durability, portability and flexibility, the Utility Self Priming Trash Pumps performs over the long haul with low maintenance for continued service. FEATURES
MODELS
|
| Body | |
|---|---|
| Wearplates | 2T/3T: Replaceable, class 30 cast iron with abrasion resistant rubber facing for extended service life. 4T: Front, replaceable, class 30 cast-iron with abrasion resistant rubber facing for extended service life. |
| Mechanical Seal | Grease lubricated with Silicon Carbide rotating and stationary seal faces. Single inside mounted, non-pusher type with self-adjusting elastomeric bellows. All other components are 304 stainless steel and Viton. |
| Cleanout Cover | 4T: Easily removable without special tools. |
| Dimensions | |
|---|---|
| Weight | 2T/3T: 350 lbs. 4T: 564 lbs. |
| Max Head | 2T: 95-96’ 3T: 98’ 4T: 98’ |
| Size | 2T: 2” 3T: 3” 4T: 4” |
| Engine | |
|---|---|
| Engine Make | 2T: Honda 3T: Honda 4T: Honda |
| Engine Model | 2T: GX160 3T: GX160 4T: GX160 |
| Horsepower | 3.9 HP |
| Fuel Tank Capacity | 2T: 0.97 Gallons 3T: 1.325 Gallons 4T: 1.725 Gallons |
| Flow Capacity | 2T: 225 GPM 3T: 435 GPM 4T: 680 GPM |
| Hydraulic | |
|---|---|
| Operating Pressure | 2T/3T: 41 PSI 4T: 42.42 PSI |
| Operational | |
|---|---|
| Impeller | Dynamically balanced, two vane, non-clogging, semi-open, class 30 cast-iron with rear-equalizing vanes to reduce axial loading and prolong seal and bearing life. |
| Solids Handling | 2T: 1.06” 3T: 1.50” 4T: 1.75” |
| Operating Speed | 3,600 RPM |
| Max Capacity | 2T: 225 GPM 3T: 435 GPM 4T: 680 GPM |
| Operating Temperature | 200° F |
| Pump Casing | Rugged, heavy-duty cast aluminum with replaceable volute. Priming and drain covers fitted with wrench nuts that can be removed without special tools. |
| Impeller Diameter | 2T/3T: 5.1” 4T: 5 7/8” |
| Discharge Size | 2T: 2” 3T: 3” 4T: 4” |
| Suction Check Valve | 2T/3T: Built-in weighted, full-flow valve to eliminate re-priming with each cycle. Constructed of cast-iron and two-ply nitrile rubber with nylon reinforcement. 4T: Built-in weighted, full-flow valve to retain liquid in the suction line to eliminate re-priming with each cycle. Constructed of cast-iron and two-ply nitrile rubber with nylon reinforcement. |
| Suction Size | 2T: 2” 3T: 3” 4T: 4” |
| Volute | 4T: Heavy-duty class 30 cast-iron |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Thompson Pumps |
| MODEL | Utility Self Priming Trash Pumps |
