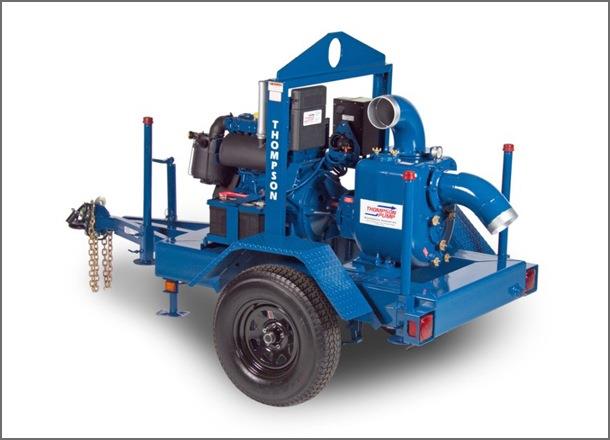

New Thompson Vacuum-Assisted Heavy Duty Trash Pump for Sale These versatile pumps are low maintenance, easy to operate and offer automatic dry priming and re-priming. This open trash and sewage dry priming pump designed with an auxiliary vacuum pump delivers the fastest priming available with high volume pumping of liquids and air. The perfect choice for high lift applications, including liquids with abrasives or suspended solids. FEATURES
MODELS
|
| Body | |
|---|---|
| Bearing Frame | Heavy-duty class 30 cast iron |
| Mechanical Seal | 65 mm type AR3, grease or oil lubricated with Tungsten Carbide rotating and stationary seal faces. Single, inside mounted, non-pusher type with self-adjusting elastomeric bellows |
| Dimensions | |
|---|---|
| Weight | 4V: 3,210 lbs. 6V: 3,480 lbs. 8V: 4,300 lbs. |
| Max Head | 4V: 104’-127’ 6V: 102’-104’ 8V: 143’-168’ |
| Size | 4V: 4” 6V: 6” 8V: 8” |
| Engine | |
|---|---|
| Engine Make | 4V: Isuzu & Deutz 6V: Kohler & Deutz 8V: Kohler & Deutz |
| Engine Model | 4V: Isuzu 4LE2T & Deutz TD2.9L4 6V: Kohler CK25KDI & Deutz TD3.6L4 8V: Kohler CK25KDI & Deutz TD3.6L4 |
| Engine | --4V: Isuzu: Fuel Economy-0.379 lb-hp-hr with Run Time of 30 Hours Isuzu: Fuel Economy-0.376 lb-hp-hr with Run Time of 38 Hours Isuzu: Fuel Economy-0.375 lb-hp-hr with Run Time of 49 Hours Deutz: Fuel Economy-0.379 lb-hp-hr with Run Time of 30 Hours Deutz: Fuel Economy-0.373 lb-hp-hr with Run Time of 38 Hours Deutz: Fuel Economy-0.371 lb-hp-hr with Run Time of 50 Hours --6V: Kohler: Fuel Economy-0.356 lb-hp-hr with Run Time of 18 Hours Kohler: Fuel Economy-0.353 lb-hp-hr with Run Time of 25 Hours Kohler: Fuel Economy-0.350 lb-hp-hr with Run Time of 28 Hours Deutz: Fuel Economy-0.370 lb-hp-hr with Run Time of 17 Hours Deutz: Fuel Economy-0.363 lb-hp-hr with Run Time of 24 Hours Deutz: Fuel Economy-0.358 lb-hp-hr with Run Time of 28 Hours --8V: Kohler: Fuel Economy-0.356 lb-hp-hr with Run Time of 17 Hours Kohler: Fuel Economy-0.353 lb-hp-hr with Run Time of 23 Hours Kohler: Fuel Economy-0.350 lb-hp-hr with Run Time of 34 Hours Deutz: Fuel Economy-0.370 lb-hp-hr with Run Time of 16 Hours Deutz: Fuel Economy-0.363 lb-hp-hr with Run Time of 23 Hours Deutz: Fuel Economy-0.358 lb-hp-hr with Run Time of 33 Hours |
| Horsepower | 4V: 40 HP (Isuzu) & 49 HP (Deutz) 6V/8V: 74 HP |
| Fuel Consumption | 4V: 1.46 GPH 6V: 2.64 GPH (Kohler)/2.74 GPH (Deutz) 8V: 3.81 GPH (Kohler)/3.96 GPH (Deutz) |
| Engine Speed | 4V: 1,800/1,600/1,400 RPM 6V/8V: 2,000/1,800/1,600 RPM |
| Flow Capacity | 4V: 640 GPM 6V: 1,430 GPM 8V: 2,550 GPM |
| Fuel Tank Options | 4V: Integral: 45 Gallons; 49 Hours (Isuzu)/50 Hours (Deutz) 6V: Integral: 49 Gallons; 28 Hours (Kohler)/28 Hours (Deutz) 8V: Integral: 67 Gallons; 34 Hours (Kohler)/33 Hours (Deutz) |
| Hydraulic | |
|---|---|
| Operating Pressure | 4V/6V: 45.02 PSI 8V: 61.9 PSI |
| Operational | |
|---|---|
| Impeller | Dynamically balanced, two-vane, non-clogging, semi-open, ductile iron, with rear-equalizing vanes. |
| Solids Handling | 4V: 2.00” 6V/8V: 3.00” |
| Operating Speed | 4V: 1,800 RPM 6V/8V: 2,000 RPM |
| Max Capacity | 4V: 640 GPM 6V: 1,500 GPM 8V: 2,600 GPM 4V: 640 GPM 6V: 1,500 GPM 8V: 2,600 GPM |
| Operating Temperature | 200° F |
| Pump Casing | Heavy-duty class 30 cast-iron volute with replaceable wear plate |
| Pump Shaft | Constructed of high quality carbon steel with a 304 stainless steel shaft sleeve |
| Impeller Diameter | 4V/6V: 9.74” 8V: 11.75” |
| Bearing | Heavy-duty grease lubricated to carry both axial and radial loads |
| Head | Rugged, back pull out design, heavy-duty class 30 cast iron with tapered bore design |
| Best Efficiency | 71% |
| Discharge Size | 4V: 4” 6V: 6” 8V: 8” |
| Suction Check Valve | Built in weighted, full-flow valve to eliminate re-priming with each cycle |
| Suction Size | 4V: 4” 6V: 6” 8V: 8” |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Thompson Pumps |
| MODEL | Vacuum-Assisted Heavy Duty Trash Pumps |
