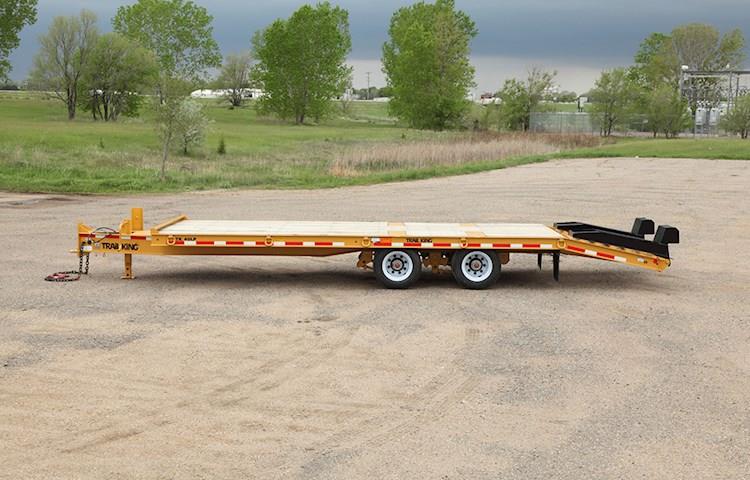

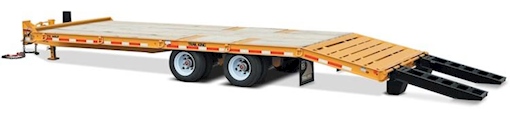

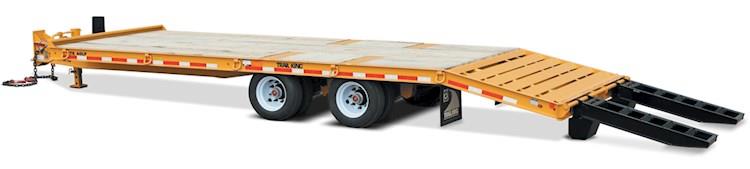

Trail King LP Tag

New Trail King Tagalong Trailer for Sale

New Trail King LP Tag Trailer for Sale

Our Tag trailer is outfitted with the highest quality materials we could find to increase its durability and capacity. All tag models feature standard equipment that creates a stress-free, safe, and efficient operation for peace of mind when you're on the go.

  • Safety Chains: Heavy-duty safety chains with GVWR-rated grab hooks are built tough for years for dependable service
  • Drop-Leg Jack: Bolt-on 25,000 lbs. 2-speed single-leg jack with drop leg
  • Heavy-Duty Bent D-Rings: Forged D-rings for your trailer to handle even your toughest hauling requirements
  • Adjustable Hitch: Accommodate a wide variety of towing vehicles with an adjustable 4-bolt hitch rated for the full GVWR of the trailer
  • Toolbox: The conveniently located toolbox is roomy enough to store chains and tools and, because it is lockable, it is secure enough for you to do so with confidence
  • Bolt-on Spare Tire Carrier: Optional feature that allows you to safely mount and easily remove a spare tire
  • Safety Headboard: The safety headboard provides extra dimension of safety and load-hauling security
  • Oak Decking: All TKLP models come with 1.5” nominal oak decking that is double screwed to cross members to prevent cupping.  This deck will stand up to years of rugged service.  Optional apitong decking available
  • Break-Away System: Sealed electric break-away system on TK20/24 models with electric brakes located in tongue area
  • Axles, Wheels, and Tires: Truck-type axles and wheels, oil seal hubs, and radial tires are standard equipment.  So you not only get the right equipment for the job, you also get less down time, easier maintenance, and long service life
  • I-Beam Crossmembers: Crossmembers consist of 80,000 PSI yield beams spaced for maximum strength and deck life
  • Extended Beavertail: A full 5 or 6 foot beavertail comes standard, allowing for a lower load angle and increased loading ease and safety.
  • Spring-Assist Ramps: Standard self-supporting 5 foot raps with spring-assist are lightweight, strong and easy to handle.  Choose between standard ladder-type or optional wood-filled or ai-assist ramps
  • Protected Electrical System: Features rubber-mounted, shock-proof, sealed lights and rubber grommets for all wiring through the frame for longer, trouble-free, low-maintenance performance life



Models:

  • TK20LP
  • TK24LP
  • TK40LP
  • TK50LP
  • TK60LP
Body
Frame Structural Steel Main Frame
Paint/Finish Trail King 2-Part Epoxy Primer and Urethane Top Coat Paint
Ramp 5’ Ladder Style Ramps with Spring Assist
Maximum Adjustable Ramps
Tongue 5’ Tongue Length
Ring (10) D-Rings
Decking 1.5” Oak Decking (Raised)
Dimensions
Deck Height TK20LP/TK40LP/TK50LP: 33”
TK24LP: 34”
TK60LP: 33.5”
Deck Width 102”
Deck Length TK20LP/TK24LP: 24’ (Flat-19’ + Beavertail-5’)
TK40LP: 26’ (Flat-21’ + Beavertail-5’)
TK50LP/TK60LP: 30’ (Flat-25’ + Beavertail-5’)
Operational
Axles TK20LP: (2) 10,000 lbs.
TK24LP: (2) 12,000 lbs.
TK40LP: (2) 22,500 lbs.
TK50LP/TK60LP: (3) 22,500 lbs.
Brakes TK20LP/TK24LP: Electric
TK40LP/TK50LP/TK60LP: 12.25” x 7.5”
Suspension TK20LP/TK24LP: Dexter Slipper Spring
TK40LP/TK50LP/TK60LP: Hutch 9700
Tires TK20LP: 235/80R X 16
TK24LP: 215/75R X 16
TK40LP: 235/80R X 17.5
TK50LP: 235/80R X 17.5
TK60LP: 235/70R X 17.5
Payload Capacity TK20LP: 20,000 lbs.
TK24LP: 24,000 lbs.
TK40LP: 40,000 lbs.
TK50LP: 50,000 lbs.
TK60LP: 60,000 lbs.
Wheels TK20LP/TK24LP: 6” x 16” (Dual Steel Disc Wheels 8 Holes)
TK40LP/TK50LP/TK60LP: 6.75” x 17.5” (Dual Steel Disc Wheels 8 Holes)
ABS TK40LP/TK50LP/TK60LP: 4S2M
Pintle Eye Hitch TK20LP/TK24LP: 18.75”-30” (Adjustable Height)
TK40LP/TK50LP/TK60LP: 16.5”-32” (Adjustable Height)
Electrical
Electrical Electrical System per DOT Regulations
Lighting LED Lights
  • 25,000 lbs. 2-Speed Single-Leg Jack
  • Self-Cleaning Beavertail (includes mud flaps)
  • Safety Chains with Grab Hooks
  • Lockable Toolbox
  • Headboard
  • Registration Holder
  • Red and white Conspicuity Markings
  • Apitong decking
  • Bolt-on knife edge ramps
  • Wood-filled ramps
  • Air-assist ramps
