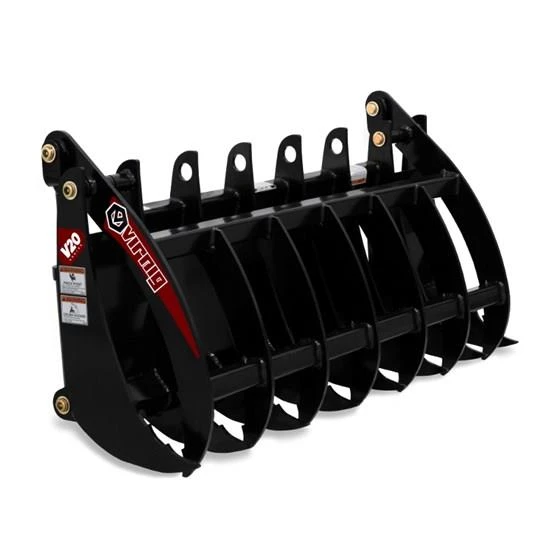

Virnig V20 Mini Skid Steer Root Rake Grapple

Virnig Skid Steer Grapple for Sale

New Virnig V20 Mini Skid Steer Root Rake Grapple for Sale

Quickly dig, rake, pile and load brush. Designed light but tough for mini skid steers.

Available Widths 36″, 42″, 48″

Models

  • CRG36
  • CRG42
  • CRG48
Specs
Number of Tines CRG36: 6 (w/sides)
CRG42: 7 (w/sides)
CRG48: 8 (w/sides)
Body
Tine Tip Type Cast Teeth
Tine Tip Cross Member No
Side Plates No
Dimensions
Weight CRG36: 270 lbs.
CRG42: 300 lbs.
CRG48: 335 lbs. (ASV mount adds approximately 35 lbs. and Bobcat mount adds 20 lbs. to model weight)
Overall Width CRG36: 35.8”
CRG42: 43.8”
CRG48: 51.8”
Overall Height 24.7’
Bucket Height 23.6”
Tine Thickness 0.375” (Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength)
Overall Depth 21.5”
Space Between Tines CRG36: 6.8”
CRG42: 7.0”
CRG48: 7.1”
Operational
Tine Spacing CRG36: 6.8”
CRG42: 7.0”
CRG48: 7.1”
Recommended Loader Capacity Greater than 500 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.0”
Cylinder Stroke 6.0”
Hinge Pin Diameter 1.0”
Grapple Jaw Opening 32.2”
Grapple Jaws CRG36: 7.2”
CRG42: 7.3”
CRG48: 7.4”
  • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Virnig
MODEL V20 Mini Skid Steer Root Rake Grapple

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Virnig V20 Mini Skid Steer Root Rake Grapple

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Virnig V20 Mini Skid Steer Root Rake Grapple for Sale

Quickly dig, rake, pile and load brush. Designed light but tough for mini skid steers.

Available Widths 36″, 42″, 48″

Models

  • CRG36
  • CRG42
  • CRG48
GENERAL INFORMATION
Manufacturer
Virnig
Model Year
Model
V20 Mini Skid Steer Root Rake Grapple
Condition
NEW
Specs
Number of Tines
CRG36: 6 (w/sides) CRG42: 7 (w/sides) CRG48: 8 (w/sides)
Body
Tine Tip Type
Cast Teeth
Tine Tip Cross Member
No
Side Plates
No
Dimensions
Weight
CRG36: 270 lbs. CRG42: 300 lbs. CRG48: 335 lbs. (ASV mount adds approximately 35 lbs. and Bobcat mount adds 20 lbs. to model weight)
Overall Width
CRG36: 35.8” CRG42: 43.8” CRG48: 51.8”
Overall Height
24.7’
Bucket Height
23.6”
Tine Thickness
0.375” (Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength)
Overall Depth
21.5”
Space Between Tines
CRG36: 6.8” CRG42: 7.0” CRG48: 7.1”
Operational
Tine Spacing
CRG36: 6.8” CRG42: 7.0” CRG48: 7.1”
Recommended Loader Capacity
Greater than 500 lbs.
Cylinder Bore
2.0”
Cylinder Pins Diameter
1.0”
Cylinder Stroke
6.0”
Hinge Pin Diameter
1.0”
Grapple Jaw Opening
32.2”
Grapple Jaws
CRG36: 7.2” CRG42: 7.3” CRG48: 7.4”
