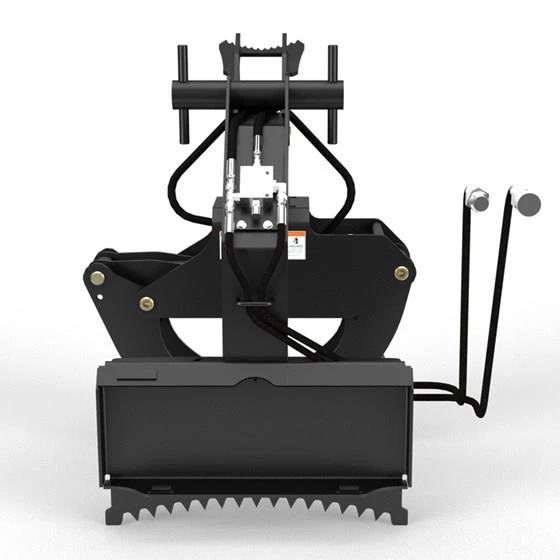

Virnig V20 Mini Skid Steer Rotating Log Grapple

Closed back of Virnig

Virnig V20 Mini Skid Steer Rotating Log Grapple for Sale

Grapple jaw rotates and hangs freely for grabbing and placing logs, brush, and rocks.

Models

  • CLG
Dimensions
Weight 300 lbs. (Manual (ASV mount adds approximately 45 lbs. and Bobcat mount adds 40 lbs. to model weight))
350 lbs. (Hydraulic Rotate (ASV mount adds approximately 45 lbs. and Bobcat mount adds 40 lbs. to model weight))
Overall Width 29.4” (Jaw Closed)
Overall Height 37.4” (Manual Rotate)
41.8” (Hydraulic Rotate)
Mount Mini Universal (all brands except Bobcat and ASV)
Bobcat Mini
ASV Mini
Overall Depth 31.1”
Jaw Tine Thickness .375” (material is AR400 Plate (150,000 PSI Minimum Yield Strength))
Operational
Rotation 270° Manual
360° Hydraulic
Recommended Loader Capacity Less than 1,650 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.25”
Cylinder Stroke 8.375”
Hinge Pin Diameter 1.0”
Grapple Jaw Opening 60.0”
Grapple Jaw Closing 7”
Hydraulic Rotator Capacity 6,750 lbs. (static)
3,375 lbs. (dynamic)
  • JAWS FEATURE 60″ OPENING & BYPASS EACH OTHER FOR GRABBING SMALLER LOGS
  • AR400 STEEL JAW TINES W/ SERRATED TIPS TO PROVIDE A BETTER GRIP
  • HOLDING VALVE PREVENTS JAWS FROM DRIFTING OPEN DURING OPERATION
  • STANDARD PUSH BAR, ROPE TIE-OFF POINTS & TRAILER RECEIVER HITCH
  • SERRATED CRADLE SECURES LOGS IN VERTICAL & HORIZONTAL POSITIONS
  • 270° MANUAL ROTATION. 360° HYDRAULIC ROTATION AVAILABLE
  • OPTIMIZED HOSE ROUTING & RECESSED GREASE ZERKS SAFEGUARDED FROM POTENTIAL DAMAGE
  • 360° HYDRAULIC ROTATION: Full rotation control for grabbing objects from any angle and allows precise placement where needed.
  • HD 3-ton rotator provides a dynamic load rating of 3,375 pounds – 3x higher than industry standard.
