Virnig V40 Skeleton Grapple

New Grapple for Sale

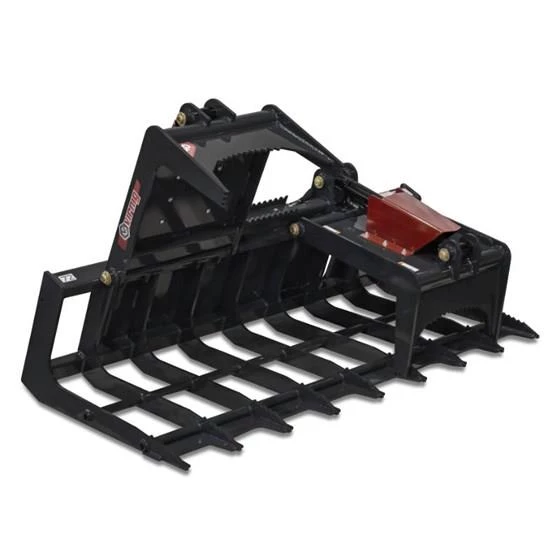

New Virnig V40 Skeleton Grapple for Sale

Open sided design for hauling brush, logs and debris.

Models

  • BSGV66
  • BSGV72
  • BSGV84
Specs
Number of Tines BSGV66: 8
BSGV72: 9
BSGV84: 10
Body
Tine Tip Type Serrated
Tine Tip Cross Member Yes
Side Plates No
Side Plate Thickness 0.5” (Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength))
Dimensions
Width BSGV66: 67.5”
BSGV72: 73.5”
BSGV84: 85.5”
Weight BSGV66: 780 lbs.
BSGV72: 815 lbs.
BSGV84: 860 lbs.
Overall Width BSGV66: 67.5”
BSGV72: 73.5”
BSGV84: 85.5”
Overall Height 26.5”
Bucket Height 20.3”
Tine Thickness 0.5” (Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength))
Overall Depth 36.9”
Space Between Tines BSGV66: 8.9”
BSGV72: 8.5”
BSGV84: 8.9”
Operational
Jaw Opening 35.2”
Tine Spacing BSGV66: 8.9”
BSGV72: 8.5”
BSGV84: 8.9”
Recommended Loader Capacity Less than 2400 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.25”
Cylinder Stroke 8.375”
Hinge Pin Diameter 1.25”
Grapple Jaw Opening 35.2”
  • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON HINGES
  • Cylinder Guards
    • Protect cylinders from damage
