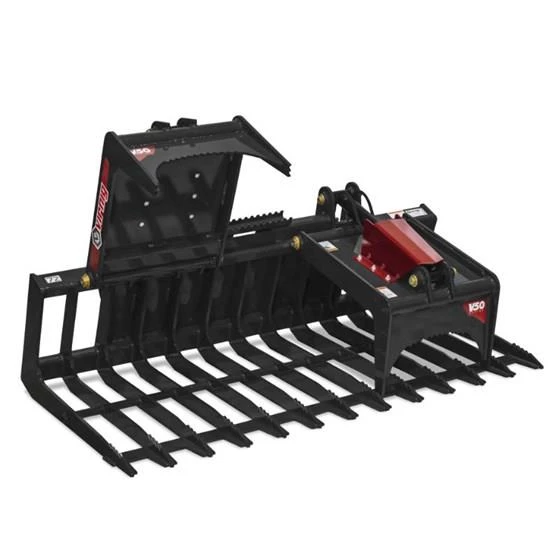

Virnig V50 Skeleton Grapple

New Grapple for Sale

New Virnig V50 Skeleton Grapple for Sale

One of the most popular and versatile Virnig grapples used to handle brush, logs and debris.

Models

  • SGV60
  • SGV66
  • SGV72
  • SGV78
  • SGV84
  • SGV90
Specs
Number of Tines SGV60: 11 (w/sides)
SGV66: 12 (w/sides)
SGV72: 13 (w/sides)
SGV78: 14 (w/sides)
SGV84: 15 (w/sides)
SGV90: 16 (w/sides)
Body
Tine Tip Type Serrated
Tine Tip Cross Member Yes
Side Plates No
Dimensions
Width SGV60: 61.5”
SGV66: 67.5”
SGV72: 73.5”
SGV78: 79.5”
SGV84: 85.5”
SGV90: 91.5”
Weight SGV60: 815 lbs.
SGV66: 850 lbs.
SGV72: 885 lbs.
SGV78: 920 lbs.
SGV84: 955 lbs.
SGV90: 990 lbs.
Overall Width SGV60: 61.5”
SGV66: 67.5”
SGV72: 73.5”
SGV78: 79.5”
SGV84: 85.5”
SGV90: 91.5”
Overall Height 27.8”
Bucket Height 21.3”
Tine Thickness 0.5” (Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).)
Overall Depth 39.9”
Space Between Tines 5.5”
Operational
Jaw Opening 36.5”
Tine Spacing 5.5”
Recommended Loader Capacity Greater than 1500 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.25”
Cylinder Stroke 8.375”
Hinge Pin Diameter 1.563”
Grapple Jaw Opening 36.1”
  • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS
  • STANDARD WITH CYLINDER GUARDS

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Virnig
MODEL V50 Skeleton Grapple

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Virnig V50 Skeleton Grapple

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Virnig V50 Skeleton Grapple for Sale

One of the most popular and versatile Virnig grapples used to handle brush, logs and debris.

Models

  • SGV60
  • SGV66
  • SGV72
  • SGV78
  • SGV84
  • SGV90
GENERAL INFORMATION
Manufacturer
Virnig
Model Year
Model
V50 Skeleton Grapple
Condition
NEW
Specs
Number of Tines
SGV60: 11 (w/sides) SGV66: 12 (w/sides) SGV72: 13 (w/sides) SGV78: 14 (w/sides) SGV84: 15 (w/sides) SGV90: 16 (w/sides)
Body
Tine Tip Type
Serrated
Tine Tip Cross Member
Yes
Side Plates
No
Dimensions
Width
SGV60: 61.5” SGV66: 67.5” SGV72: 73.5” SGV78: 79.5” SGV84: 85.5” SGV90: 91.5”
Weight
SGV60: 815 lbs. SGV66: 850 lbs. SGV72: 885 lbs. SGV78: 920 lbs. SGV84: 955 lbs. SGV90: 990 lbs.
Overall Width
SGV60: 61.5” SGV66: 67.5” SGV72: 73.5” SGV78: 79.5” SGV84: 85.5” SGV90: 91.5”
Overall Height
27.8”
Bucket Height
21.3”
Tine Thickness
0.5” (Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).)
Overall Depth
39.9”
Space Between Tines
5.5”
Operational
Jaw Opening
36.5”
Tine Spacing
5.5”
Recommended Loader Capacity
Greater than 1500 lbs.
Cylinder Bore
2.0”
Cylinder Pins Diameter
1.25”
Cylinder Stroke
8.375”
Hinge Pin Diameter
1.563”
Grapple Jaw Opening
36.1”
