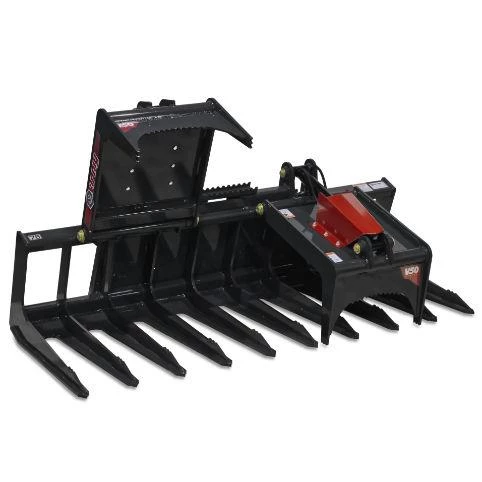

Virnig V50 Skeleton Tine Grapple

New Grapple for Sale

New Virnig V50 Skeleton Tine Grapple for Sale

No front cross member for better material penetration and open sides for hauling logs and brush.

Models

  • STG66
  • STG72
  • STG78
  • STG84
  • STG90


Specs
Number of Tines STG66: 8 (w/sides)
STG72: 9 (w/sides)
STG78: 10 (w/sides)
STG84: 10 (w/sides)
STG90: 11 (w/sides)
Body
Tine Tip Type Serrated
Tine Tip Cross Member No
Side Plates No
Dimensions
Width STG66: 68.0”
STG72: 74.0”
STG78: 80.0”
STG84: 86.0”
STG90: 92.0”
Weight STG66: 910 lbs.
STG72: 950 lbs.
STG78: 990 lbs.
STG84: 1010 lbs.
STG90: 1050 lbs.
Overall Width STG66: 68.0”
STG72: 74.0”
STG78: 80.0”
STG84: 86.0”
STG90: 92.0”
Overall Height 27.5”
Bucket Height 21.1”
Tine Thickness 0.5” (Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).)
Overall Depth 36.5”
Space Between Tines STG66: 9.5”
STG72: 8.4”
STG78: 8.7”
STG84: 9.3”
STG90: 8.5”
Operational
Jaw Opening 36.4”
Tine Spacing STG66: 9.5”
STG72: 8.4”
STG78: 8.7”
STG84: 9.3”
STG90: 8.5”
Recommended Loader Capacity Greater than 1500 lbs.
Cylinder Bore 2.0”
Cylinder Pins Diameter 1.25”
Cylinder Stroke 8.375”
Hinge Pin Diameter 1.563”
Grapple Jaw Opening 36.4”
  • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
  • TINES FULLY GUSSETED FOR ADDED STRENGTH
  • NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS ON ALL PIVOTS
  • STANDARD WITH CYLINDER GUARDS
