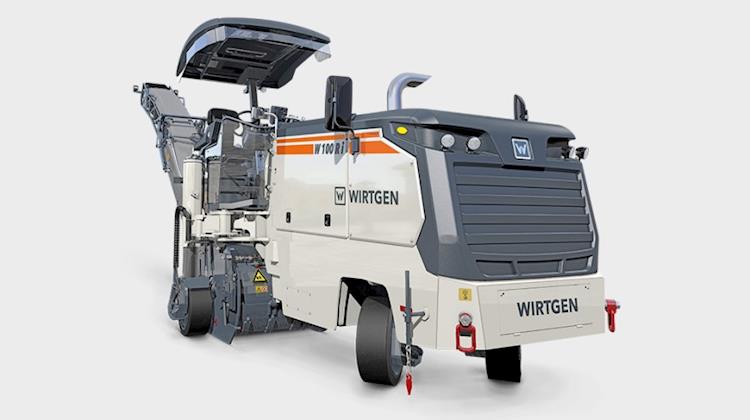

New Wirtgen W 120 Ri Small Milling Machine for Sale
Small milling machines are equipped with a wheeled chassis and a milling drum positioned at the rear. The granulated RAP which is broken up by the rotating milling drum is transferred to a slewing and height-adjustable discharge conveyor and immediately loaded onto waiting transport vehicles. The compact rear loaders are highly maneuverable and their rear right wheel can be swiveled in when milling flush to the edges of obstacles. A variety of different milling drums are available, enabling the small milling machines to cover a wide range of applications extending from partial pavement rehabilitations and tie-in milling to the rehabilitation of industrial floors.
- Powerful cold milling machine in the one-meter class for economic milling operations at a working width of 3 ft. 11 in. (1.20 m).
- The machine offers a large variety of applications ranging from surface course milling jobs to complete pavement removal.
- A variety of various milling drums enable high levels of flexibility and machine performance.
- The levelling system LEVEL PRO PLUS integrated in the machine control system provides precise milling results.
- To optimize the material loading process, the powerful rear-loading system can be flexibly adjusted.
|
|
| Length |
15.58’ |
| Width |
7.02’ |
| Height |
8.69’ |
| Weight |
33,951 lbs. |
| Engine Make |
Deutz |
| Engine Model |
TCD 6.1 L6 |
| Cylinders |
6 |
| Horsepower |
215 HP |
| Cooling |
Water |
| Displacement |
372.2 Imp.gal |
| Fuel Consumption |
Rated power: 11.6 gal
Field Mix: 4.7 gal |
| Fuel Tank Capacity |
126 gal |
| Water Tank Capacity |
217 gal |
| Emission Standards |
EU Stage 5/US EPA Tier 4f |
| Working Speed |
1.2 mph (Milling Speed) |
| Tires |
Front: 2.03’ x 9.05”
Rear: 2.03’ x 10.03” |
| Travel Speed - Forward |
4.7 mph |
| Hydraulic Tank Capacity |
22.7 Gallons |
| Cutting Width |
3'11" (optional 4'11") |
| Cutting Depth |
12” |
| Cutting Diameter |
3.05’ |
| Conveyor Belt Width |
19” |
| Drum Diameter |
3.05' (with tools) |
- Exhaust emissions category: EU Stage 5/US EPA Tier 4f
- Operating weight: 33,951 lbs.
- Milling width: 3’11”
- Milling depth max: 12”
- Displacement: 372.2 Imp.gal
- Max. travel speed: 4.7 mph
- Max. milling speed: 1.2 mph
- Maximum power: 215 HP
Standard Equipment
- Basic Machine
- Engine cover with noise insulation and flexibly decoupled engine mounting for especially quiet running and low noise emissions
- Milling Drum Unit
- Automatically activating, hydraulic drive belt tensioner for reliable power transmission to the milling drum
- Hydraulically lifting side plate right and left
- Round milling drum housing and straight left side plate for optimum material transport, making for low left-over amounts when lifting out the milling drum
- The right-hand side of the milling drum housing can be easily opened for maintenance or drum change
- Optimized for quick change of the milling drum, including by using centering pins with the side foor of the milling drum housing
- With automatic electrical safety shut-off for the milling drum
- Loading of the Milled Material
- Machine prepared for optional material loading by discharge conveyor
- Conveyor speed continuously variable
- Conveyor slewing angle right/left 25 degrees each for significantly improved loading procedures
- Operator’s Platform
- Operator’s platform with ergonomically arranged operator’s seat, control panel arranged on the right and digital milling depth indicator in the control display
- Steering console with adjustable rake and reach for ideal adaptation of the operator’s platform to the operator
- Three mirrors
- Machine design permits unobstructed view of the milled edge at the right and left as well as the working area in front of the milling drum on the right
- Conveniently accessible ladder/footstep to the operator’s platform with night-time lighting and especially low, folding bottom edge of the latter/footstep
- Robust anti-vandalism protection for the controls
- Track Unit and Height Adjustment
- Precise machine height adjustment in 1 or 5 mm steps from the machine control panel
- Infinitely variable, hydraulic all-wheel drive with three speed ranges
- Digital load control, manual engageable, hydraulic differential lock (by flow distributor)
- Wide solid rubber tires for the lowest ground pressures and optimum traction
- For milling along curb edges, the rear right support wheel can be swiveled hydraulically from the operator’s platform in front of the milling drum
- Hydraulic spring-loaded brake
- Proportional height adjustment at rear
- Miscellaneous
- Flexible weight concept by optional additional weights
- Particularly low machine center of gravity for high stability of the machine
- Robust and easily maintained machine chassis with optimum ground clearance and short overhangs
- Towing device
- Reversing horn
- Large tool package with lockable tool box and additional storage space for two pick containers
- Pre-fitting for installing the WITOS FleetView control unit
- European type certification, EuroTest mark and CE conformity
Standard Equipment, can be replaced with optional equipment if desired
- Milling Drum Unit
- Milling drum housing FB1200
- Manually adjustable front milling drum unit seal FB1200
- Milling Drums
- Milling drum FB1200 HT22 LA18 with 101 picks
- Loading of the Milled Material
- Machine with hydraulic pre-fitting for a discharge conveyor – screw coupling
- Discharge conveyor, 7,350 mm long, 500 mm wide
- Machine Control and Leveling System
- Digital milling depth indicator in the control display
- Operator’s Platform
- Standard operator’s seat
- Operator’s platform without canopy
- Track Unit and Height Adjustment
- Front axle for working with a FB1000/FB1200
- Miscellaneous
- Standard painting in RAL 9001 (cream)
- WITOS FleetView – professional telematics solution for machine operation and service optimization
- Halogen/LED lighting system including rotating beacon
- Milling Drum Unit
- Milling drum housing FB1200 FCS-L
- Hydraulically adjustable front milling drum unit seal FB1200, including overload sensor
- Overload sensor on the scraper FB1000/1200
- Active floating position for the side plates, left and right
- Milling Drums
- FCS milling drum FB1200 HT22 LA18 with 101 picks
- FCS milling drum FB1200 HT22 LA8 with 173 picks
- FCS milling drum FB1200 HT5 LA6X2 with 408 picks
- Loading of the Milled Material
- Machine with hydraulic pre-fitting for a discharge conveyor – quick-change coupling
- Discharge conveyor 7,350 mm long, 500 mm wide, with hydraulic folding device
- Discharge conveyor 6,500 mm long, 500 mm wide, with hydraulic folding device
- Machine with belt device without discharge conveyor (FB1200)
- Hydraulic connection adapter screw coupling for additional discharge conveyor
- Hydraulic connection adapter quick-change coupling for additional discharge conveyor
- Machine Control and Leveling System
- LEVEL PRO PLUS leveling system right and left
- RAPID SLOPE sensor for LEVEL PRO PLUS leveling system
- Leveling boom including sensor for LEVEL PRO PLUS leveling system
- Job data acquisition in the control display
- Operator’s Platform
- Comfort operator’s seat incl. seat heating
- Operator’s platform with weather canopy and lateral weather protection elements (FB1200)
- Track Unit and Height Adjustment
- Increased traveling speed (up to 7.5 km/h)
- Miscellaneous
- Standard film coating in RAL 9001 (cream)
- Film coating according to the customer’s wishes
- Model without WITOS FleetView
- High-power lighting system LED including rotating beacon
- Additional weight 400 kg for four-wheel machine, removable
- Milling drum assembly trolly to FB1300
- Assembly aid for the milling drum change
- Electrical fuel filter preheating
- Hydraulically driven water filler pump
- Hydraulic pick ejector
- Monitor system with 2 cameras and screen
- License plate holder with LED lighting
