Multiquip PX400 Submersible Trash

Multiquip PX400 Submersible Trash

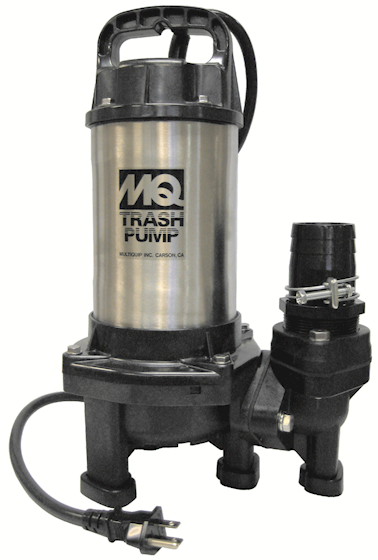

New Multiquip PX400 Electric Submersible Trash Pump for Sale

Heavily debris-laden water calls for rugged pumps. Multiquip submersible trash pumps can easily handle solids up to 1 inch in diameter. All pumps employ single phase electrical power, compact design, high performance impeller design, and trusted performance operations.

This lightweight, compact submersible trash pump is ideal for moving water with debris (Maximum size - one inch solids). Additionally, with its abrasion resistant resin impeller, and corrosion resistant stainless steel construction, this pump tackles marine and certain chemical applications. Further, the PX400 incorporates internal thermal overload protection, dual shaft seals, sealed ball bearings impeller and molded 19 foot power cable with strain relief.

  • 0.5 horsepower, 115 volt / 6.2 amps, 1Ø, electric motor
  • Built-in overload protection.
  • Two inch (NPT) discharge with barb hose adapter and hose clamp.
  • Total Head: 34 feet
  • MAX Capacity: 72 gmp.
  • Pumps Liquid Up To 120 degrees Farenheit.
  • 304 stainless steel pump housing body
  • Dewaters flat surfaces up to one inch levels.
Dimensions
Height 17 in. (432 mm)
Weight 25 lbs. (11 kg)
Engine
Engine 1-phase, 115V 6.2A
Horsepower 0.5 hp (0.37 kW)
Operational
Solids Handling 1”
  • Bolt-on discharge port allows easy replacement
  • Cast aluminum housing for light weight
  • Electric motor — water is discharged around the casing for cool operation
  • Safety First — Selected models are UL listed for the US and Canada.
  • Urethane-covered cast iron volute and an allurethane impeller withstand tough dewatering projects
  • Strain relief cord protection
  • Thermal overload protection prevents motor damage
  • Compact, streamlined design
  • Cast iron/steel motor casing serves as heat conductor
  • Oil-filled dual seal provides lubrication when running dry
  • Rugged strainer and stainless steel hardware provide long service life
  • Float Switch ~ SW1A: Mechanically activated, wide-angle design single ON/OFF float switch that is not sensitive to rotation or turbulence.  A 120V “piggy-back” plug provides convenient operational set-up. For all Multiquip submersible single phase, 115V Pumps, and other comparable pump models.
    • SW1A Features
      • 120/230V 50/60Hz Single Phase
      • Rated for 13A running and 85A start-up.
      • Adjustable activation range 6” to 18”.
      • High impact PVC, corrosion resistant float housing.
      • Operates up to 140° F.
      • Heavy duty electrical contacts.
      • UL/CSA Certified.
      • Passed NSF Standard 61 Protocol.
      • 16 gauge, 2-conductor water resistant cable - 20’ cord length.
      • Includes standard mounting cable & pipe clamps.
  • Control Box ~ CB3: 120V 50/60 Hz Single Phase Controller w/two mechanically activated wide angle ON/OFF float switches (SW1WOPA). This box is selected if the operations call for a manual ON/OFF/AUTO Switch. Housing manufactured from polyester reinforced fiberglass, water resistant, UL/CSA Certified. Use with any 115V or 120V model submersible pump. For all Multiquip submersible single phase, 115V Pumps, and other comparable pump models.
  • Double Float Switch ~ SW2A: Consists of two mechanically activated wide-angle ON/OFF float switches and a splice tube. The slice tube contains a Holding Relay which enables the floats to function in series. It is well suited for confined applications requiring an accurate pumping range. A Holding Relay eliminates pump chatter in turbulent water conditions. (Deactivation point @ 4” below mounting – Activation point @ 4” above mounting).
    • SW2A Features
      • 120/230V 50/60Hz Single Phase
      • Rated for 13A running and 78A start-up.
      • Adjustable activation range 2” to 48”.
      • High impact PP, corrosion resistant float housing.
      • Operates up to 140° F.
      • Heavy duty electrical contacts.
      • UL/CSA Certified.
      • Passed NSF Standard 61 Protocol.
      • Cable attached to Float Housings: 16 gauge, 2-conductor water resistant
      • Cable above Splice: 14 gauge 3 conductor w/‘piggy-back’ 120V plug w/20’ cord Length.
      • Includes standard mounting cable & pipe clamps.
  • Discharge Hose – NPT Thread
    • HD250 - (50’ L 2” Diameter)
  • Discharge Hose – Quick Disconnect Couplers
    • HDQ250 - (50’ L 2” Diameter)

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Multiquip
MODEL PX400 Submersible Trash

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Multiquip PX400 Submersible Trash

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Multiquip PX400 Electric Submersible Trash Pump for Sale

Heavily debris-laden water calls for rugged pumps. Multiquip submersible trash pumps can easily handle solids up to 1 inch in diameter. All pumps employ single phase electrical power, compact design, high performance impeller design, and trusted performance operations.

This lightweight, compact submersible trash pump is ideal for moving water with debris (Maximum size - one inch solids). Additionally, with its abrasion resistant resin impeller, and corrosion resistant stainless steel construction, this pump tackles marine and certain chemical applications. Further, the PX400 incorporates internal thermal overload protection, dual shaft seals, sealed ball bearings impeller and molded 19 foot power cable with strain relief.

  • 0.5 horsepower, 115 volt / 6.2 amps, 1Ø, electric motor
  • Built-in overload protection.
  • Two inch (NPT) discharge with barb hose adapter and hose clamp.
  • Total Head: 34 feet
  • MAX Capacity: 72 gmp.
  • Pumps Liquid Up To 120 degrees Farenheit.
  • 304 stainless steel pump housing body
  • Dewaters flat surfaces up to one inch levels.
GENERAL INFORMATION
Manufacturer
Multiquip
Model Year
Model
PX400 Submersible Trash
Condition
NEW
Dimensions
Height
17 in. (432 mm)
Weight
25 lbs. (11 kg)
Engine
Engine
1-phase, 115V 6.2A
Horsepower
0.5 hp (0.37 kW)
Operational
Solids Handling
1”
