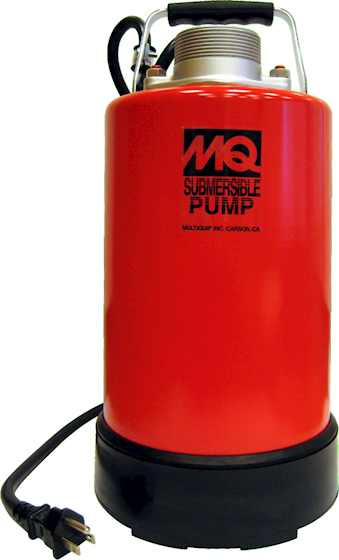

Multiquip ST2038P Submersible Clean Water

Multiquip ST2038P Submersible Clean Water

New Multiquip ST2038P Electric Submersible Clean Water Pump for Sale

Powerful Single and Three Phase models perfect for removing water from confined areas. The compact design and high performance engineering ensures professional results for every application. Single Phase model discharge sizes range from 1.125 to 3 inches. Three Phase model discharge sizes range from 3 to 6 inches.

This lightweight, compact submersible centrifugal pump is ideal for moving water in multiple confined and open area applications. The unique casing design of this pump permits it to draw water to a level of 1/16” without having to place the pump in any kind of sump. This versatile, low maintenance pump is perfect for a wide range of operations supporting Contractors, Service Utilities, Municipalities, and Homeowners. Further, the ST2038P incorporates a rugged cast aluminum housing, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller and molded 19 foot Power Cable with strain relief.

  • One horsepower, 115 volt / 8.0 amps, 1Ø, UL & CUL listed electric motor.
  • Built-in overload protection.
  • Two inch (NPT) female discharge port.
  • Reliable double mechanical oil-filled seals.
  • Cast iron / steel motor casing serves as heat conductor.
  • Pumps liquid up to 120 degrees Fahrenheit.
  • 50 feet of molded power cord with strain relief
  • Dewaters flat surfaces up to 1/16 inch levels.
Dimensions
Height 15.4 in. (391 mm)
Weight 31 lbs. (14 kg)
Engine
Engine 1-phase 115V 6.5A
Horsepower 1 hp (0.75 kW)
Operational
Solids Handling 0”
  • Bolt-on discharge port allows easy replacement
  • Cast aluminum housing for light weight
  • Electric motor — water is discharged around the casing for cool operation
  • Safety First — Selected models are UL listed for the US and Canada.
  • Urethane-covered cast iron volute and an allurethane impeller withstand tough dewatering projects
  • Strain relief cord protection
  • Thermal overload protection prevents motor damage
  • Compact, streamlined design
  • Cast iron/steel motor casing serves as heat conductor
  • Oil-filled dual seal provides lubrication when running dry
  • Rugged strainer and stainless steel hardware provide long service life
  • Float Switch ~ SW1A: Mechanically activated, wide-angle design single ON/OFF float switch that is not sensitive to rotation or turbulence.  A 120V “piggy-back” plug provides convenient operational set-up. For all Multiquip submersible single phase, 115V Pumps, and other comparable pump models.
    • SW1A Features
      • 120/230V 50/60Hz Single Phase
      • Rated for 13A running and 85A start-up.
      • Adjustable activation range 6” to 18”.
      • High impact PVC, corrosion resistant float housing.
      • Operates up to 140° F.
      • Heavy duty electrical contacts.
      • UL/CUL Listed.
      • Passed NSF Standard 61 Protocol.
      • 16 gauge, 2-conductor water resistant cable - 20’ cord length.
      • Includes standard mounting cable & pipe clamps.
  • Control Box ~ CB3: 120V 50/60 Hz Single Phase Controller w/two mechanically activated wide angle ON/OFF float switches (SW1WOPA). This box is selected if the operations call for a manual ON/OFF/AUTO Switch. Housing manufactured from polyester reinforced fiberglass, water resistant, UL/CSA Certified. Use with any 115V or 120V model submersible pump. For all Multiquip submersible single phase, 115V Pumps, and other comparable pump models.
  • Double Float Switch ~ SW2A: Consists of two mechanically activated wide-angle ON/OFF float switches and a splice tube. The slice tube contains a Holding Relay which enables the floats to function in series. It is well suited for confined applications requiring an accurate pumping range. A Holding Relay eliminates pump chatter in turbulent water conditions. (Deactivation point @ 4” below mounting – Activation point @ 4” above mounting).
    • SW2A Features
      • 120/230V 50/60Hz Single Phase
      • Rated for 13A running and 78A start-up.
      • Adjustable activation range 2” to 48”.
      • High impact PP, corrosion resistant float housing.
      • Operates up to 140° F.
      • Heavy duty electrical contacts.
      • UL/CSA Certified.
      • Passed NSF Standard 61 Protocol.
      • Cable attached to Float Housings: 16 gauge, 2-conductor water resistant
      • Cable above Splice: 14 gauge 3 conductor w/‘piggy-back’ 120V plug w/20’ cord Length.
      • Includes standard mounting cable & pipe clamps.
  • Discharge Hose – NPT Thread
    • HD250 - (50’ L 2” Diameter)
  • Discharge Hose – Quick Disconnect Couplers
    • HDQ250 - (50’ L 2” Diameter)
