Multiquip ST2040T/ST2040TF

New Multiquip Pump for Sale

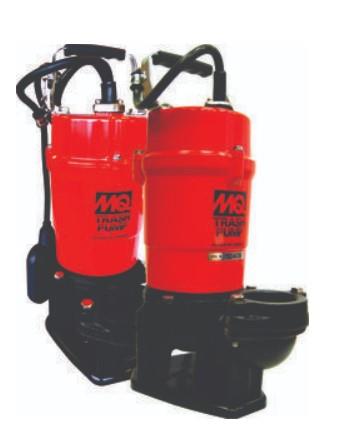

New Multiquip ST2040T/ST2040TF Electric Submersible Trash Pump for Sale

Versatile pumps with a wide variety of applications that support Construction Contractors, Utilities Managers, Municipalities, and Home Owners.

Compact, rugged, trusted ~ Multiquip Submersible Pump Line is ideal for removing water from well casings, construction sites, cofferdams, manholes, basements, fountains, basins, rooftops, and excavations.

Heavily debris-laden water calls for rugged pumps. Multiquip submersible trash pumps can easily handle solids up to 1 inch in diameter. All pumps employ single phase electrical power, compact design, high performance impeller design, and trusted performance operations.

This rugged compact submersible trash pump is ideal for moving debris laden water (MAX solid size 1”). A heavy duty cast iron housing and abrasion resistant impeller withstands tough dewatering applications. The ST2040T features dual shaft seals, powerful 115V motor, internal thermal protection, 25’ power cable with strain relief, convenient carry handle, and UL/CUL listings. Pumps fluids up to 140° F. Model ST2040TF comes with attached industrial float switch.

This lightweight, compact submersible trash pump is ideal for moving water with debris (Maximum size - 1” solids). The Industrial grade cast iron housing and abrasion resistant Cast Iron Impeller with Neoprene Rubber overlay tackles tough dewatering applications and heavy usage operations. Further, the ST2040T incorporates a carrying handle, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller, easy impeller clean-out, and molded 25’ Power Cable with strain relief. Model ST2040TF is avaiable that provides a tethered industrial mechanical float switch assembly.
Dimensions
Height 16.8”
Weight 34 lbs.
Cable Length 25’
Pump Diameter 10.3"
Engine
Horsepower 1 HP
Voltage 115 V
Amps 25 A (Starting)
6.8 A (Running)
Phase Single
Operational
Impeller Neoprene Rubber over Cast-Iron
Head 40’
Discharge Size 2” NPT Discharge
Water Capacity 79 GPM
Impeller Disc Size 2"
Solid Intake 1"
  • 1.0HP, 115V/6.5A, 1Ø, UL & CUL Listed Electric Motor.
  • Built-in Overload Protection.
  • 2” (NPT) Female Discharge.
  • Total Head: 40 ft.
  • MAX Capacity: 79 gpm.
  • Pumps Liquid Up To 120° F.
  • Heavy-duty Cast Iron Housing construction.
  • Dewaters Flat Surfaces Up To 2” Levels.

This lightweight, compact submersible trash pump is ideal for moving water with debris (Maximum size - 1” solids). The Industrial grade cast iron housing and abrasion resistant Cast Iron Impeller with Neoprene Rubber overlay tackles tough dewatering applications and heavy usage operations.

Multiquip offers the following Optional Accessories for the ST2040T:

  • Float Switch ~ SW1A: Mechanically activated, wide-angle design single ON/OFF float switch that is not sensitive to rotation or turbulence.  A 120V “piggy-back” plug provides convenient operational set-up. For all Multiquip submersible single phase, 115V Pumps, and other comparable pump models.
    • SW1A Features
      • 120/230V 50/60Hz Single Phase
      • Rated for 13A running and 85A start-up.
      • Adjustable activation range 6” to 18”.
      • High impact PVC, corrosion resistant float housing.
      • Operates up to 140° F.
      • Heavy duty electrical contacts.
      • UL/CSA Certified.
      • Passed NSF Standard 61 Protocol.
      • 16 gauge, 2-conductor water resistant cable - 20’ cord length.
      • Includes standard mounting cable & pipe clamps.
    • Control Box ~ CB3: 120V 50/60 Hz Single Phase Controller w/two mechanically activated wide angle ON/OFF float switches (SW1WOPA). This box is selected if the operations call for a manual ON/OFF/AUTO Switch. Housing manufactured from polyester reinforced fiberglass, water resistant, UL/CSA Certified. Use with any 115V or 120V model submersible pump. For all Multiquip submersible single phase, 115V Pumps, and other comparable pump models.
  • Double Float Switch ~ SW2A: Consists of two mechanically activated wide-angle ON/OFF float switches and a splice tube. The slice tube contains a Holding Relay which enables the floats to function in series. It is well suited for confined applications requiring an accurate pumping range. A Holding Relay eliminates pump chatter in turbulent water conditions. (Deactivation point @ 4” below mounting – Activation point @ 4” above mounting).
    • SW2A Features
      • 120/230V 50/60Hz Single Phase
      • Rated for 13A running and 78A start-up.
      • Adjustable activation range 2” to 48”.
      • High impact PP, corrosion resistant float housing.
      • Operates up to 140° F.
      • Heavy duty electrical contacts.
      • UL/CSA Certified.
      • Passed NSF Standard 61 Protocol.
      • Cable attached to Float Housings: 16 gauge, 2-conductor water resistant
      • Cable above Splice: 14 gauge 3 conductor w/‘piggy-back’ 120V plug w/20’ cord Length.
  • Includes standard mounting cable & pipe clamps.
    • Discharge Hose – NPT Thread
      • HD250 - (50’ L 2” Diameter)
    • Discharge Hose – Quick Disconnect Couplers
      • HDQ250 - (50’ L 2” Diameter)

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Multiquip
MODEL ST2040T/ST2040TF

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Multiquip ST2040T/ST2040TF

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Multiquip ST2040T/ST2040TF Electric Submersible Trash Pump for Sale

Versatile pumps with a wide variety of applications that support Construction Contractors, Utilities Managers, Municipalities, and Home Owners.

Compact, rugged, trusted ~ Multiquip Submersible Pump Line is ideal for removing water from well casings, construction sites, cofferdams, manholes, basements, fountains, basins, rooftops, and excavations.

Heavily debris-laden water calls for rugged pumps. Multiquip submersible trash pumps can easily handle solids up to 1 inch in diameter. All pumps employ single phase electrical power, compact design, high performance impeller design, and trusted performance operations.

This rugged compact submersible trash pump is ideal for moving debris laden water (MAX solid size 1”). A heavy duty cast iron housing and abrasion resistant impeller withstands tough dewatering applications. The ST2040T features dual shaft seals, powerful 115V motor, internal thermal protection, 25’ power cable with strain relief, convenient carry handle, and UL/CUL listings. Pumps fluids up to 140° F. Model ST2040TF comes with attached industrial float switch.

This lightweight, compact submersible trash pump is ideal for moving water with debris (Maximum size - 1” solids). The Industrial grade cast iron housing and abrasion resistant Cast Iron Impeller with Neoprene Rubber overlay tackles tough dewatering applications and heavy usage operations. Further, the ST2040T incorporates a carrying handle, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller, easy impeller clean-out, and molded 25’ Power Cable with strain relief. Model ST2040TF is avaiable that provides a tethered industrial mechanical float switch assembly.
GENERAL INFORMATION
Manufacturer
Multiquip
Model Year
Model
ST2040T/ST2040TF
Condition
NEW
Dimensions
Height
16.8”
Weight
34 lbs.
Cable Length
25’
Pump Diameter
10.3"
Engine
Horsepower
1 HP
Voltage
115 V
Amps
25 A (Starting) 6.8 A (Running)
Phase
Single
Operational
Impeller
Neoprene Rubber over Cast-Iron
Head
40’
Discharge Size
2” NPT Discharge
Water Capacity
79 GPM
Impeller Disc Size
2"
Solid Intake
1"
