Kleemann MSC 953i EVO

Kleemann MSC 953i EVO

New Kleemann MSC 953i EVO Mobile Classifying Screens for Sale

The mobile screening plants MOBISCREEN are used for screening almost all types of natural rock and in recycling. The classifying and coarse screens are available in a double- or triple-deck version, with hydraulic or diesel-electric drives. The applications of the MOBISCREEN plants are diverse. There is a variety of appropriate screen media available for obtaining different grain sizes and for different feed material.

The Quarry Line classifying screens are designed to cope with the tough conditions experienced in daily work in the quarry. With their diesel-electric drives they are even more powerful and are suitable for linking with crushers from the KLEEMANN Quarry Line. Thanks to their large screening surfaces, a high throughput is guaranteed, also for small grain sizes.

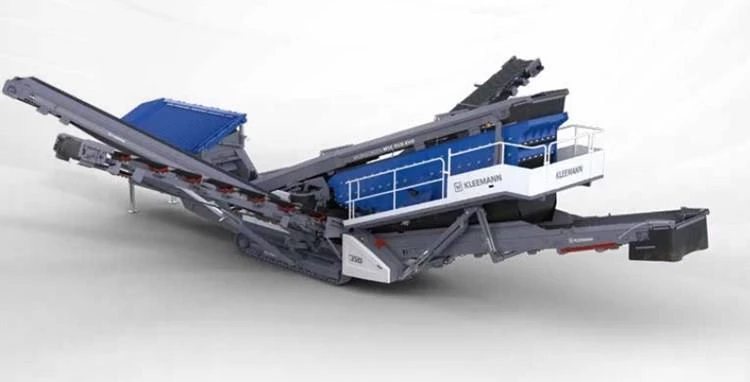

The mobile screening plant MOBISCREEN MSC 953i EVO is equipped with a 9.5 m2 screen casing. The triple-deck screening plant impresses with a feed capacity of up to 500 t/h. It is controlled using a modern control system. As a result, all functions are easy to control and operating statuses and machine functions can be viewed at any time.
Dimensions
Transport Length 58’11”
Transport Height 11’1”
Transport Width 10’6”
Transport Weight 80,700 lbs. (basic plant)
96,150 lbs. (max. configuration)
Final Screening Unit 61” x 20’ (upper deck)
Hopper Discharge Conveyor Length 11'6"
Hopper Discharge Conveyor Width 47"
Engine/Drivetrain
Horsepower 131-133 HP
Drive Concept Diesel-hydraulic
Operational
Screen Triple-deck classifying screen
Feed Height 8’3”
11’9” (foldable slotted grate)
Feed Size Max 6.3” x 4” x 2”
Feed Capacity up to approx. 551 US t/hr
Hopper Volume 10.5 yd³
Feeding Conveyor Length 39’4”
Feeding Conveyor Width 47”
Belt Conveyor Discharge Width 26” (fine grain discharge)
Belt Conveyor Discharge Length 5’11” (fine grain discharge)
Discharge Conveyor Height 16’5” (Overflow, lower deck, medium grain)
16’5” (Overflow, center deck, medium grain)
16’6” (Overflow, upper deck, oversize grain)
10’10”-14’9” (fine grain)
Discharge Conveyor Width 31” (Overflow, lower deck, medium grain)
26” (Overflow, center deck, medium grain)
20” (Overflow, upper deck, oversize grain)
47” (fine grain)
Discharge Conveyor Length 33’6” (Overflow, lower deck, medium grain)
33’6” (Overflow, center deck, medium grain)
29’2” (Overflow, upper deck, oversize grain)
26’7” (fine grain)

Drive Concept: Diesel-hydraulic

  • Feed capacity up to approx.: 551 US t/hr
  • Type: Triple-deck classifying screen
  • Mobile triple-deck screening unit
  • Diesel-hydraulic drive
  • Classifying screen
  • Maximum feed size 100 x 160 mm



  • Triple-deck classifying screen
  • 10.5 yd³ hopper unit
  • Dosing flap on hopper unit for continuous material flow
  • Foldable grate, gap width 4“, can be folded hydraulically (small remote control)
  • Feeding conveyor, smooth belt
  • Material brake for feeding conveyor prevents material rolling back
  • Material brake for screen prevents feed material leaping from the upper deck
  • Oversize grain conveyor, belt width 1‘ 8“, max. discharge height 16‘ 1“
  • Side discharge conveyors, belt width 2‘ 8“, max. discharge height 16‘ 5“
  • Fine grain discharge conveyor, belt width 48“, max. discharge height 14‘ 9“
  • Removable, wired machine control system with the functions: crawler chassis, operation of discharge conveyors and foldable grate (transport and production position), automatic mode, emergency off function, moving support feet in/out, tilt adjustment of fine grain conveyor and screen box, moving and lifting the feeding conveyor, speed setting of hopper discharge conveyor, side discharge conveyors, oversize grain conveyor
  • 13 yd³ hopper unit
  • Wear lining made from wear-resistant steel (KRS) or rubber (for 10.5 and 13 yd³)
  • Vibrating grate for separating feed material, gap width of upper deck 4“, gap width of lower deck 1.26“ - 3.54“
  •  Feeding conveyor, rubber cleated belt prevents material rolling back
  • Oversize grain conveyor can be configured on the left or right, belt width 500 mm, discharge height 16‘ 1“ (no retrofit possible)
  • Belt cover for the feeding conveyor or fine grain discharge conveyor
  • External power supply – for efficient mains operation, possible to change between two energy sources: own propulsion (diesel engine) or external power supply
  • Start-Stop system (only for Tier 4f engines) for low consumption in idle phases
  • Radio remote control: crawler chassis, oversize grain conveyor, slotted grate, emergency stop
  • Remote control for foldable grate, in addition to cable control (omitted if plant has radio remote control)
  • Line coupling for interlinking with other KLEEMANN plants
  • Large selection of screen surfaces for all screens with different mesh widths
  • Anti-clogging ropes for use with sticky material
  • Water spray system for dust reduction
  • Lighting, halogen or LED
