Kleemann MSS 802i EVO

Kleemann MSS 802i EVO

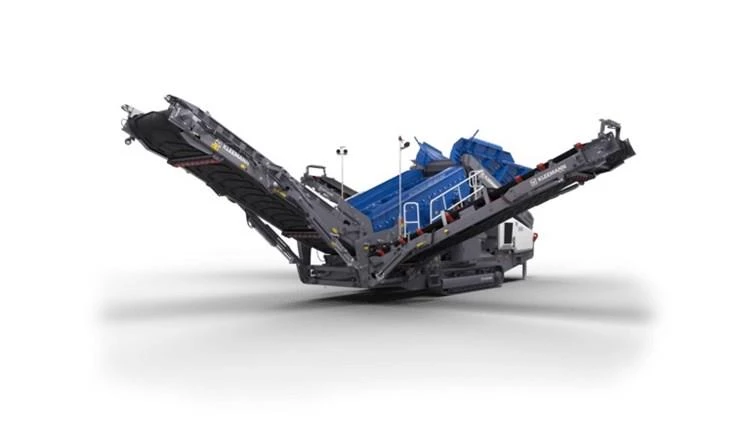

New Kleemann MSS 802i EVO Mobile Coarse Screen for Sale

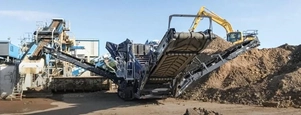

The MOBISCREEN coarse screens are used, for example, before the crushing process for sorting out material. Coarse screen media such as slotted grates, finger screens, and punched plates are used. Various plant variants with double-deck screening units are available.

Changing work sites and new applications often create challenges for screening plants. The mobile screen for coarse elements MOBISCREEN MSS 802 EVO is ideally prepared for this. The large range of screen surfaces and the simple setting of screening parameters make it possible to adapt the MSS 802 EVO easily to new application conditions.



  • Feed Hopper
    • Hopper rear wall foldable at three heights for optimum material transfer even at a low feed height
    • Filling aids that can be folded independently from one another for simple wheel loader feeding from the side and rear
    • Apron feeder for feeding sharp abrasive material
    • Moving the feeding unit in and out and folding as well as unlocking/locking the filling aids can be carried out safely and conveniently from the ground with the mobile remote control
    • KRS wear plates are interchangeable, easy to replace
  • Control System
    • Simple operating concept reduces the risk of operating errors
    • Mobile, remote control device for perfect viewing of the executed functions from a safe distance
    • Radio remote control for comfortable control of the driving function and the hopper discharge conveyor
    • Better planning and analysis of the plant thanks to the WITOS FleetView telematics solution
    • Automated system for for starting production easily and quickly
  • Drive
    • Well-thought-out hydraulics concept for efficient power transmission and reduced operating costs
    • Flexible refuelling from both sides
    • Ease of physical and visual access to all components relevant to maintenance
    • Electric operation through external power supply for emission-free work and lower operating costs thanks to electro-hydraulic Dual-Power drive
  • Screen
    • Large selection of screen media for application flexibility, configuration diversity of individual screen segments
    • Screen box angle can be adjusted from 15 to 20 degrees for optimisation of the screening capacity combined with high product quality
    • Screen blankets and/or chain curtain, can be installed in two positions on the screen box, for adaptation of the upper deck to difficult feed material
    • Lower deck with banana profile, 5° angle on the infeed side for improved screen efficiency; flatter angle on the discharge side for increased final product quality
  • Material Flow
    • Optimised material guidance with 55"-wide main discharge conveyor for higher production output
    • Simple conversion from 3 to 2 final grain sizes increases application flexibility
    • Speed of all conveyor belts can be adjusted easily via remote control
    • Magnetic separator and magnetic conveyor head drum protect downstream crushers and increase material quality
    • Generous material transfer to the screen deck for ideal usage of the screening surface
    • High discharge heights and therefore higher stockpiles through extended main discharge conveyor and telescopic side discharge conveyor
    • Line coupling allows process and safety-related connection to all KLEEMANN EVO and PRO plants; optimised material flow and enhanced safety throughout the entire plant train
    • The stockpile probe required for process coupling can be placed on any discharge conveyor of the plant for more application flexibility
    • Hydraulic port for operating a stacker
  • Safety & ergonomics
    • Quick and convenient service due to very good access to all components requiring maintenance
    • LED lighting included in basic configuration; Premium lighting for extended illumination of the material flow and transfer points
    • Simple and fast cleaning of the hopper discharge conveyor underpass thanks to a removable chute
    • Extended, extra-wide work platforms and horizontally adjustable screen box enable easy ergonomic access to all screen decks
  • Transport
    • Folding of the side discharge conveyors without the disassembly of parts reduces set-up times and the risk of damage
    • Precise loading and positioning of the plant thanks to easy to operate drive control system
  • Environment
    • Pre-installed water spray system for dust reduction; electric water pump to supply pressurized water supply to the spray system
    • Temperature-controlled smart fan reduces the noise level and diesel consumption
Dimensions
Length 14’9”
Width 55”
Transport Length 51’12”
Transport Height 11’2”
Transport Width 9’10”
Transport Weight 66,000 lbs. (basic plant)
84,900 lbs. (max., configuration approx.)
Final Screening Unit 61” x 16’ (Upper Deck W x L)
61” x 14’9” (Lower Deck W x L)
Engine/Drivetrain
Horsepower 131 HP
Drive Concept Diesel-hydraulic
Operational
Hopper Variable speed (optional)
Hopper Capacity 11.9 yd³
Screen Double deck screen for coarse elements
Feed Height 11’9”
Feed Size Max 18”
Feed Capacity up to approx. 551 US t/hr
Hopper Volume 11.9 yd³
Screen Type Scalping Screen
Belt Conveyor Discharge Width 47”
Belt Conveyor Discharge Length 14’4”
Discharge Conveyor Width 35” (overflow, lower deck (medium grain))
55” (overflow, lower deck (medium grain))
Discharge Conveyor Length 25’6” (overflow, lower deck (medium grain))
19’11” (overflow, lower deck (medium grain))
Number of Screen Decks 2
  • Drive Concept: Diesel-hydraulic
  • Feed capacity up to approx.: 551 US t/hr
  • Type: Double deck screen for coarse elements
  • Mobile double-deck screening unit
  • Diesel-hydraulic drive
  • Screen for coarse elements
  • Maximum feed size 18”



  • Double-deck screening unit
  • Hopper unit 11,9 yd³
  • Feeding conveyor, smooth belt
  • Side discharge conveyor, belt width 35", discharge height max. 11' 11"
  • Main discharge conveyor, belt width 55", discharge height max. 13' 3"
  • Simple conversion from 3 to 2 final grain sizes possible (depending on configuration, counterweights may be required)
  • Removable, wired machine control system used for controlling all driving and movement functions, adapting settings and reading out machine data and troubleshooting aids
  • WITOS FleetView telematics system ensures efficient fleet and service management
  • Pre-installed water spray system reduces dust
  • Lighting concept in compliance with standards for lighting work platforms, the operator's position and crawler carrier chains in driving operation
  • Line coupling for linking with other KLEEMANN plants
  • Individually foldable hopper filling aids for rear and side loading: width of feed opening 12' 12", wired remote control, foldable and lockable
  • Wear lining made of wear-resistant steel (KRS) or rubber
  • Apron feeder for feeding very coarse material
  • Side discharge conveyors with different designs: with magnetic drum and ejector chute, telescopic design (discharge heights 13' 4"/14' 5"), mirror-image configuration
  • Screen blanket or chain curtain reduces the speed of the feed material
  • Release cords on conveyor belts for safe stopping in the event of an emergency
  • Permanent magnetic separator above the crusher discharge conveyor
  • Diesel refuelling pump: hose system incl. pump
  • External power supply – for efficient mains operation, possibility to change between two energy sources: own propulsion (diesel engine) or external power supply
  • Radio remote control: crawler chassis, hopper discharge conveyor ON/OFF and speed setting, emergency stop
  • Large selection of screen media for all decks, individual configuration option for the individual screen segments
  • Straps with knocking elements for use with sticky material
  • Extended main discharge conveyor, discharge height max. 15' 4"
  • Electric water pump for autonomous supply of the spray system
  • Premium lighting for extended illumination of the material flow (transfer points and stockpiles)

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Kleemann
MODEL MSS 802i EVO

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Kleemann MSS 802i EVO

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Kleemann MSS 802i EVO Mobile Coarse Screen for Sale

The MOBISCREEN coarse screens are used, for example, before the crushing process for sorting out material. Coarse screen media such as slotted grates, finger screens, and punched plates are used. Various plant variants with double-deck screening units are available.

Changing work sites and new applications often create challenges for screening plants. The mobile screen for coarse elements MOBISCREEN MSS 802 EVO is ideally prepared for this. The large range of screen surfaces and the simple setting of screening parameters make it possible to adapt the MSS 802 EVO easily to new application conditions.



  • Feed Hopper
    • Hopper rear wall foldable at three heights for optimum material transfer even at a low feed height
    • Filling aids that can be folded independently from one another for simple wheel loader feeding from the side and rear
    • Apron feeder for feeding sharp abrasive material
    • Moving the feeding unit in and out and folding as well as unlocking/locking the filling aids can be carried out safely and conveniently from the ground with the mobile remote control
    • KRS wear plates are interchangeable, easy to replace
  • Control System
    • Simple operating concept reduces the risk of operating errors
    • Mobile, remote control device for perfect viewing of the executed functions from a safe distance
    • Radio remote control for comfortable control of the driving function and the hopper discharge conveyor
    • Better planning and analysis of the plant thanks to the WITOS FleetView telematics solution
    • Automated system for for starting production easily and quickly
  • Drive
    • Well-thought-out hydraulics concept for efficient power transmission and reduced operating costs
    • Flexible refuelling from both sides
    • Ease of physical and visual access to all components relevant to maintenance
    • Electric operation through external power supply for emission-free work and lower operating costs thanks to electro-hydraulic Dual-Power drive
  • Screen
    • Large selection of screen media for application flexibility, configuration diversity of individual screen segments
    • Screen box angle can be adjusted from 15 to 20 degrees for optimisation of the screening capacity combined with high product quality
    • Screen blankets and/or chain curtain, can be installed in two positions on the screen box, for adaptation of the upper deck to difficult feed material
    • Lower deck with banana profile, 5° angle on the infeed side for improved screen efficiency; flatter angle on the discharge side for increased final product quality
  • Material Flow
    • Optimised material guidance with 55"-wide main discharge conveyor for higher production output
    • Simple conversion from 3 to 2 final grain sizes increases application flexibility
    • Speed of all conveyor belts can be adjusted easily via remote control
    • Magnetic separator and magnetic conveyor head drum protect downstream crushers and increase material quality
    • Generous material transfer to the screen deck for ideal usage of the screening surface
    • High discharge heights and therefore higher stockpiles through extended main discharge conveyor and telescopic side discharge conveyor
    • Line coupling allows process and safety-related connection to all KLEEMANN EVO and PRO plants; optimised material flow and enhanced safety throughout the entire plant train
    • The stockpile probe required for process coupling can be placed on any discharge conveyor of the plant for more application flexibility
    • Hydraulic port for operating a stacker
  • Safety & ergonomics
    • Quick and convenient service due to very good access to all components requiring maintenance
    • LED lighting included in basic configuration; Premium lighting for extended illumination of the material flow and transfer points
    • Simple and fast cleaning of the hopper discharge conveyor underpass thanks to a removable chute
    • Extended, extra-wide work platforms and horizontally adjustable screen box enable easy ergonomic access to all screen decks
  • Transport
    • Folding of the side discharge conveyors without the disassembly of parts reduces set-up times and the risk of damage
    • Precise loading and positioning of the plant thanks to easy to operate drive control system
  • Environment
    • Pre-installed water spray system for dust reduction; electric water pump to supply pressurized water supply to the spray system
    • Temperature-controlled smart fan reduces the noise level and diesel consumption
GENERAL INFORMATION
Manufacturer
Kleemann
Model Year
Model
MSS 802i EVO
Condition
NEW
Dimensions
Length
14’9”
Width
55”
Transport Length
51’12”
Transport Height
11’2”
Transport Width
9’10”
Transport Weight
66,000 lbs. (basic plant) 84,900 lbs. (max., configuration approx.)
Final Screening Unit
61” x 16’ (Upper Deck W x L) 61” x 14’9” (Lower Deck W x L)
Engine/Drivetrain
Horsepower
131 HP
Drive Concept
Diesel-hydraulic
Operational
Hopper
Variable speed (optional)
Hopper Capacity
11.9 yd³
Screen
Double deck screen for coarse elements
Feed Height
11’9”
Feed Size Max
18”
Feed Capacity up to approx.
551 US t/hr
Hopper Volume
11.9 yd³
Screen Type
Scalping Screen
Belt Conveyor Discharge Width
47”
Belt Conveyor Discharge Length
14’4”
Discharge Conveyor Width
35” (overflow, lower deck (medium grain)) 55” (overflow, lower deck (medium grain))
Discharge Conveyor Length
25’6” (overflow, lower deck (medium grain)) 19’11” (overflow, lower deck (medium grain))
Number of Screen Decks
2
