Wirtgen WS 250

Wirtgen WS 250

New Wirtgen WS 250 Soil Stabilizer for Sale

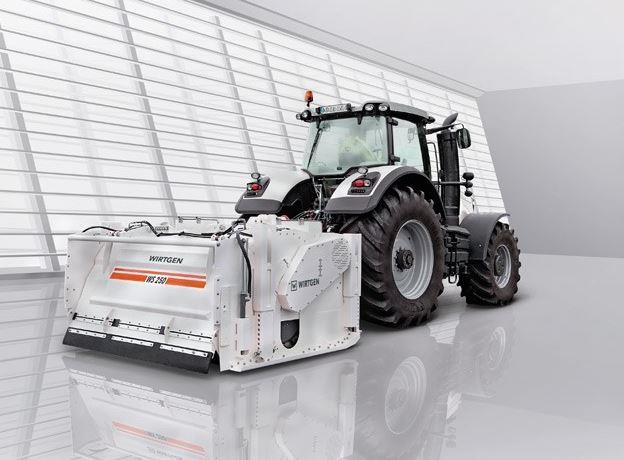

The WS 250 is an all-new, tractor-towed, three-point hitch machine used for soil stabilization, and is equipped with a mechanically driven milling and mixing rotor which ensures a uniform mixing of the binding agent across the entire working width. This attachment comes in either 6-foot,7-inch, or 8-foot cutter widths, and cuts up to 20 inches deep in one pass. It can be equipped with Type III holders and floating side plates.
Specs
Number of Tools/Teeth 98 (w/toolholder system HT9)
104 (w/toolholder system HT11)
Drum Diameter 43" (w/tools)
Tools 1.5" (spacing)
Dimensions
Weight 10,428 - 11,023 lbs. (4,750 - 5,000 kg) with HT9 tollholder system
Engine
Horsepower 241.4-376 hp
Operational
Working Width 8.2 ft
Working Depth 0-20 in
  • Working width max.: 8’2”
  • Working depth: 20”
  • Operating weight: 10,648-11,376 lbs.
  • Tractor:
    • Loading weight: 5,511.6-6,613.9 lbs.
    • Recommended engine power: 296 HP
    • Travel drive: continuous 0-X km/h
    • Driveshaft: w/1 ¾” internal toothing, 20 or 6 teeth
    • Driveshaft speed: 1000 RPM
    • Rear power lift: Three-point, category 3 and 4
    • Max. output at the driveshaft: 376 HP



  • Basic Machine
    • Standardized three-point hitch
    • Splined shaft for mounting a driveshaft with internal toothing 1-3/4 (20)
    • Splined shaft for mounting a driveshaft with internal toothing 1-3/4 (6)
    • Movable side plates with hydraulic floating position
    • Mechanical belt drives, left and right
    • Mechanically adjustable levelling blade at the scraper blade
    • Standard painting in Wirtgen white with orange stripes
  • Milling and Mixing Rotor
    • Milling and mixing rotor with HT9 toolholder system and a shank diameter of 25 mm
  • Miscellaneous
    • Loading and lashing lugs
    • Comprehensive toolkit in lockable storage compartment
    • Eurpoean design type certification, GS mark (Geprufte Sicherheit=Tested Safety) and CE conformity
  • Basic Machine
    • Hydraulic top link with high tensile and compressive strengths
    • Driveshaft with internal toothing 1-3/4 (20-part) for driving the stabilizer (recommended)
    • Driveshaft with internal toothing 1-3/4 (6-part) for driving the stabilizer
    • Movable side plates with mechanical retainer
    • Special painting, one or several colours
  • Milling and Mixing Rotor
    • Milling and mixing rotor with HT11 toolholder system and a shank diameter of 22 mm
  • Miscellaneous
    • Digital milling depth indicator for installation on the tractor
    • Pneumatic tool extractor for tractors with dual-circuit compressed air system

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Wirtgen
MODEL WS 250

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Wirtgen WS 250

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Wirtgen WS 250 Soil Stabilizer for Sale

The WS 250 is an all-new, tractor-towed, three-point hitch machine used for soil stabilization, and is equipped with a mechanically driven milling and mixing rotor which ensures a uniform mixing of the binding agent across the entire working width. This attachment comes in either 6-foot,7-inch, or 8-foot cutter widths, and cuts up to 20 inches deep in one pass. It can be equipped with Type III holders and floating side plates.
GENERAL INFORMATION
Manufacturer
Wirtgen
Model Year
Model
WS 250
Condition
NEW
Specs
Number of Tools/Teeth
98 (w/toolholder system HT9) 104 (w/toolholder system HT11)
Drum Diameter
43" (w/tools)
Tools
1.5" (spacing)
Dimensions
Weight
10,428 - 11,023 lbs. (4,750 - 5,000 kg) with HT9 tollholder system
Engine
Horsepower
241.4-376 hp
Operational
Working Width
8.2 ft
Working Depth
0-20 in
