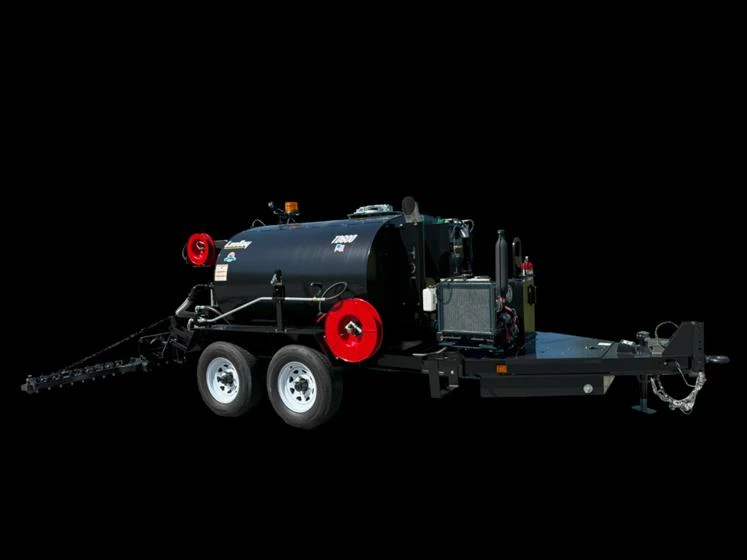

New LeeBoy TD600 Tack Distributor for Sale Perfect for the all-inclusive commercial paving contractor, the TD600 Tack Distributor provides a perfectly sized tank for large projects including parking lots, secondary roads, highway, driveways or soil stabilization. Daily tasks can be completed with ease by using LeeBoys application rate control system . Uniquely configurable, the customizable options give the contractor the ability to create a solution specific to their exact needs. |
| Body | |
|---|---|
| Axles | 6,000 lbs. |
| Tires | ST 225/75D15 |
| Controls | Color display with readouts for: engine rpm, engine fault status, system faults, engine hours, ground speed, application rate, spray width, material temperature, material temperature set point, mode selection, asphalt pump current speed, valve status, totals screen Auto/Manual pump selector Manual pump speed dial Engine start/stop Bar circulate/off/spray switch Bar section on/off for left wing, left center, right center, right wing Mode selector: off, spray/bar circulate, tank circulate/hand spray, reverse suction, cleanout, calibration E-stop |
| Jackleg | 5,000 lbs. |
| Manhole Diameter | 20” 10” (fill hole) |
| Manhole Pressure Relief | 3 PSI |
| Dimensions | |
|---|---|
| Length | 17’5” |
| Width | 7’8” |
| Height | 6’9” |
| Weight | 5,660 lbs. (shipping) 10,750 lbs. (loaded) |
| Tank Capacity | 600 Gallons |
| Tank Length | 64” |
| Tank Width | 70” |
| Tank Height | 42” |
| Tank Return | 1” rear tank return |
| Engine | |
|---|---|
| Engine Make | Kubota |
| Horsepower | 24.8 HP |
| Fuel Tank Capacity | 16 Gallons |
| Pump | 150 gallons per minute Viking asphalt pump |
| Temperature Gauge | 0-500° F Adjustable angle faceplate |
| Flush Tank | 7 Gallons |
| In-Tank Overflow | 2” in-tank overflow |
| Operational | |
|---|---|
| Brakes | Electric brakes on axles |
| Heating System | One 300,000 BTU diesel burner Five pass flue system Galvanized exhaust stack Material temperature set point adjustable from in-cab controls automatically turns off burner when reached |
| Clean Out | 4” |
| Sampling Valve | 1” |
| Flue Design | Five pass flue system Galvanized exhaust stack |
| Pintle Hitch | 3” w/10” of vertical adjustment |
| Towing | Wired w/7-pin connector |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | LeeBoy |
| MODEL | TD600 Tack Distributor |
