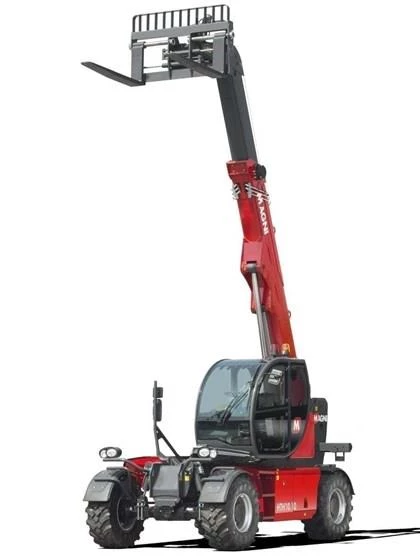

New Magni HTH 10.10 Heavy-Duty Telehandler for Sale Due to their Superior Power and Maneuverability, HTH Machines are Excellent for Heavy Industries, Logistics, Mining, Quarries, and Oil & Gas Applications. Magni’s heavy-duty telescopic handlers have a payload of between 10 and 45 tonnes and are ideal for heavy-duty tasks in manufacturing, ports and mining. They guarantee maneuvering speed and excellent stability. They have been designed specifically to take on such onerous tasks and so make the ideal companion for those requiring performance and reliability in extreme conditions. They are undisputed champions in heavy-duty work. The HTH 10.10 telescopic handler is ideal for moving large, bulky loads in complete safety. Able to lift up to 10 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrain types. |
| Body | |
|---|---|
| Cab | Front, rear and upper wiper Headlights for road circulation, flashing beacon Rear view mirrors |
| ROPS, FOPS & OPS | FOPS/ROPS tested hermetic cab with protectors |
| Heater/Defroster/Air Conditioning | Heating/air conditioning as standard |
| Capacity at Maximum Height | 15,432 lbs. |
| Number of Gears | 2/2 |
| Dimensions | |
|---|---|
| Length | 18’6” |
| Width | 8’4” |
| Height | 9.80’ |
| Weight | 30,645 lbs. (unladen) 10,141 lbs. (Front axle unladen (boom retracted and lowered)) 18,739 lbs. (Rear axle unladen (boom retracted and lowered)) |
| Ground Clearance | 1’2” |
| Turning Radius | 13.45’ (at wheels) |
| Lifting Height | 31’2” |
| Engine | |
|---|---|
| Engine Make | Deutz |
| Engine Model | TCD 3.6 L4 – Stage V |
| Engine Type | Turbocharged direct injection diesel |
| Cylinders | 4 in line |
| Horsepower | 134 HP |
| Cooling | Water – intercooler |
| Max Travel Speed | 25 MPH |
| Fuel Tank Capacity | 51.51 Gallons |
| Steering | 3 types: w/front steering, w/round steer & w/crab steering |
| Rated RPM | 2200 RPM |
| Climate control as standard | Yes |
| Automatic accessory recognition | Yes |
| Gearbox | Gearbox w/2 speeds forward/reverse |
| Filters | Suction and return line filters |
| Drivetrain | |
|---|---|
| Axles | Heavy Duty with epicyclic reduction One steering cylinders each axle |
| Transmission | Hydrostatics: Rexroth/Danfoss Variable displacement hydrostatic pump w/electronic control One variable displacement hydrostatic pump |
| Front Axle | Levelling correction front axle: +8° on the right and +8° on the left |
| Rear Axle | Tilting rear axle |
| Engine/Drivetrain | |
|---|---|
| Displacement | 0.95 Gallons |
| Torque | 500 Nm @ 1600 RPM |
| Hydraulic | |
|---|---|
| Hydraulic Tank Capacity | 50.19 Gallons |
| Hydraulic System | 350 bar (Load Sensing) Piston Pump Proportional hydraulic electrovalve |
| Operational | |
|---|---|
| Brakes | Hydraulic servo-assisted multidisc brake in oil bath on both axles, with double circuit Negative parking brake |
| Tires | 445/65-R22.5**two each axle, driving and steering |
| Gradeability | 66% |
| Lift Capacity | 22,046 lbs. |
| Safety Features | Electronic safety system which controls the load w/definition of the lifted load, radius and comparison w/the diagrams stored Block of aggravating movements of the load Safety valves on cylinders |
| Hose | High pressure flexible hoses |
| Application | Manufacturing |
| Max. Reach | 16’6” |
| Drawbar Pull | 84 kN |
| Load Center | 1.96’ |
| Controls | Multi-function electro proportional joystick |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Magni |
| MODEL | HTH 10.10 |
