Magni TH 3.6

New Telehandler

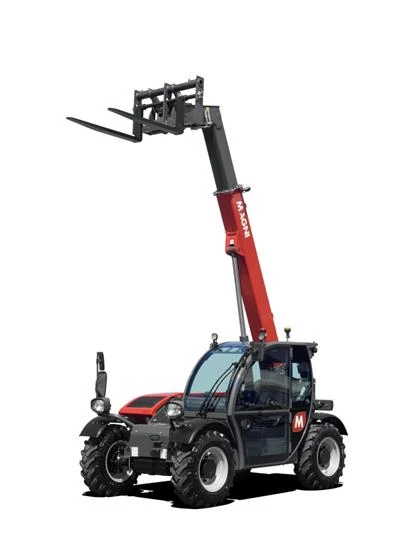

Magni TH 3.6 Telehandler for Sale

With capacity of 3 tonnes (6613 lbs) and lifting height of 5.8 metres (19 ft), the new TH 3.6 combines small size with impressive performance. In fact, the most compact fixed telescopic handler in the TH range, intended for the construction and logistics sectors and soon also for agriculture, is able to lift its maximum load to a height of 5.4 metres (17.7 ft), 2,500 kg (5511 lbs) to the maximum height and 1,100 kg (2425 lbs) to a horizontal reach of more than 3 metres (10 feet). Its low-level design makes it ideal for tight spaces, while retaining optimal ground clearance for uneven terrains.

These characteristics, together with a Deutz Stage V engine of 55 kW (75 hp) give it a top speed of 35 km/h (21 mph). The four-wheel drive and steering, with hydrostatic transmission, provide superlative stability and manoeuvrability with 3 steering modes: front, concentric and crab.

With the launch of the TH 3.6 Magni also presents the new compact cab, which maintains the same development approach as its predecessor in the TH range together with a new dashboard that optimises the user experience through the ergonomic placing of the main controls. It also features USB ports (3.0 and c-type) for charging electronic devices and a handy cup holder. The new cab’s standard outfit is completed by the air-suspended seat, adjustable steering column, heating and radio.

Consulted via the 7 inch touch screen, the MCTS (Magni Combi Touch System) on-board software provides complete control of the machine with icon-based navigation. From the main menu, the operator can access the themed screens with the various functions, including load charts.

Unlike competitor models on the market, which have the usual load cell systems, the TH 3.6 is the only machine equipped with a more sophisticated, precise tipping protection mechanism to maximise performance and safety, in line with the entire TH range. This is the LMI (Load Moment Indicator), which enables constant monitoring of the machine’s movements to prevent any kind of overload.
Body
Wheels 4WD – 4WS
Capacity at Maximum Height 5,500 lbs.
Number of Gears 2/2
Dimensions
Length 12’5”
Width 5’11”
Weight 10,700 lbs. (unladen)
Ground Clearance 1’3”
Turning Radius 13’4” (end of forks)
Lifting Height 19’
Axle Weight 2,000 lbs. (Front axle unladen boom retracted and lowered)
6,300 lbs. (Rear axle unladen boom retracted and lowered)
Engine
Engine Make Deutz
Engine Model TCD 2.9 L4 Stage V & TCD 2.9 L4 EDG Stage IIIA
Engine Type Diesel direct injection turbocharged
Cylinders 4 in line
Horsepower 75.30 HP
Cooling Water
Fuel Tank Capacity 17.2 Gallons
Steering Frontal/Concentric/Crab
Rated RPM 2600 RPM
Engine Oil Capacity 2.4 Gallons2.4 Gallons2.4 Gallons2.4 Gallons2.4 Gallons2.4 Gallons2.4 Gallons2.4 Gallons2.4 Gallons
Coolant Capacity 4 Gallons
Travel Speed 21 MPH
Working Pressure 260 bar
Gearbox Direct drive 2 speed
Drivetrain
Axles Axles with planetary gearboxes
Transmission Type Hydrostatic
Front Axle Steering
Rear Axle Free oscillating
Engine/Drivetrain
Displacement 176 in³
Torque 192 lb/ft at 1600 RPM
Hydraulic
Hydraulic System 255 bar
Hydraulic Flow 22.9 gpm
Hydraulic Oil Capacity 22.4 Gallons
Hydraulic Movements Control 1 joystick with integrated manoeuvre enable
Circuit Type Gear Pump
Service Pump Fixed displacement
Controls for Boom and Turret Movements Electro-proportional valve
Operational
Brakes Service: Wet multi-disk on front axle
Parking: Hydraulic with negative action on front axle
Tires 12.0/75 R18
Gradeability 51%
Maximum Reach 10’6”
Lift Capacity 6,600 lbs.
Maximum Pressure 500 bar
Application Construction, Mining & Quarrying, Logistics
Stabilizers None
Drawbar Pull 9.66 lbf
Max Mass Towable on Hook 6,850 lbs.
Max. Boom head flow rate 19.8 gpm
  • Special: For each special application Magni has the right solution, that allow you to do the job in complete safety and enhance the machine’s performances.
    • MY MAGNI: The new GPS system that can provide a total overview that enables you to map and track every movement of your fleet, and displays the most critical items on your dashboard. Technical alarms and maintenance data help to keep your fleet running and in perfect condition at all times. Whereas, safety warnings alert you of malfunctions and safety-related defects. MyMagni is available on Desktop, Apple Store and Google Play Store. For the RTH and HTH range, the first three years’ subscription is included in the price of the machine.
    • SPECIAL PAINTING (COMPLETE MACHINE): Option consisting of custom colour for the following machine parts: chassis, stabilisers and cab.
    • SPECIAL PAINTING (REPLACING ONLY MAGNI RED): Option consisting of custom colour for the following machine parts: chassis-turret and boom, and engine compartment/tank.
  • Performance: Everything revolves around excellent performances that make using a Magni a unique experience. An experience where the operator is the center, who will be able to do his best during working hours.
    • 110 V PLUG AT BOOM HEAD: Extension cable provision for connection of  110 V components on the end of the boom.
    • HYDRAULIC OIL HEATER (230V): Option consisting of a 230V plate heating element positioned on the hydraulic oil tank in order to maintain oil viscosity in very cold climates.
      • Magni recommends the use of Q8 oils and lubricants.
    • NORDIC PACKAGE: Option consisting of:
      • heater for engine coolant 230V
    • OPT-02-027
      • hydraulic oil for cold climate
    • OPT-02-025
      • led lights on top of the cab front
    • OPT-02-003
      • led lights on top of the cab rear
    • OPT-02-004
      • led lights on the boom
    • OPT-02-007
      • external battery cut-off
    • OPT-03-003
      • 110/230 V plug in the cabin
    • Magni recommends the use of Q8 oils and lubricants.
  • HYDRAULIC OIL FOR COLD CLIMATES: ISO VG 32 hydraulic oil which provides full performance in very cold climates down to -32°.
    • Magni recommends the use of Q8 oils and lubricants.
  • BIODEGRADABLE HYDRAULIC OIL: High-performance EAL, completely synthetic and zinc free for hydraulic systems. Saturated synthetic ester base. Allows for «lifetime filling» extended oil change intervals, without deposits.
    • Magni recommends the use of Q8 oils and lubricants.
  • HEATER FOR ENGINE COOLANT: Option consisting of an electric engine coolant pre-heating element, perfect for countries with cold climates.
  • Safe & Secure: To be always up to date with the different countries regulations, Magni has a solution for each need.
    • No. 4 AE77 445/65 R22.5 ROAD WHEELS: Robust, durable, safe and reliable even off-road. This Aeolus 445/65R22.5 radial agricultural tyre has a profile depth of 16.5 mm. It is the ideal solution for those who often drive on paved roads and need a more comfortable tyre for long distances. Heavy loads are no problem for the AE77, which ensures maximum performance even on tyres.
    • LIFTING CYLINDER STOP: Safety device for stopping the lifting cylinder.
    • LEFT SPARE WHEEL: Type-approved, pre-assembled left wheel composed of rim and tyre.
      • OPT-03-017 (445/65 R22,5) is compatible with TH range
    • RIGHT SPARE WHEEL: Type-approved, pre-assembled right wheel composed of rim and tyre.
      • OPT-03-016 (445/65 R22,5) is compatible with TH range
    • NO. 4 FOAM FILLED TYRES 445/65 R22,5: This tyre virtually eliminates the risk of damage and blowouts, ensuring the machine remains in full working order and guaranteeing the highest levels of safety during all demanding uses. It is filled with a polyurethane foam which undergoes a chemical reaction and solidifies in 24 hours. The result is an elastomer which will not extrude either from cuts or holes, yet allows the tyre to deflect like a corresponding air-filled model.
      • The speed of the machine will be reduced for safety reasons with this option. The following kit is a replacement for the standard wheels.
    • ANTISPARK SYSTEM (ANTISPARK + VALVE ON THE ENGINE): The engine is fitted with devices to prevent any sparks from exiting from the exhaust system, reducing greately the risk for fire and explosions.
      • Option available only for Deutz engines. Option not necessary for Stage V engines.
    • EMERGENCY STOP BUTTONS: Option composed by 2 external buttons for the complete shut off of the machine mounted on the lateral sides of the chassis.
  • Comfort: Magni gives full attention to operator comfort. Small details are the proof that Magni put all its efforts into having the maximum results of care and construction precision.
    • AIR SUSPENDED SEAT WITH HEATING 24V: The air suspension seat absorbs the majority of the machine’s dynamic  oscillations during movement, making driving more comfortable. Option that increases seat comfort and user wellbeing on cold days. The seat is equipped with a 24V heating system. The heat is gradually reduced automatically, and when the lowest level is reached, the seat heating system is switched off automatically. It is also possible to disable the system manually at any time.
    • HEATED SEAT 24V: This option increases seat comfort and user well-being on cold days. The seat is equipped with a 24V heating system. The heat is gradually reduced automatically, and when the lowest level is reached, the seat heating system is switched off automatically. It is also possible to disable the system manually at any time.
    • RADIO DAB: The digital radio expands the features of the vehicle radio by incorporating a Digital Receiver which receives DAB and DAB+ terrestrial radio broadcasts. The advantages of digital radio include an enormous range of channels and impressive sound quality. As digital broadcasts are not yet available in all areas, DAB reception will automatically switch between digital and analogue reception depending on the signal strength. Integrated Bluetooth connection.
    • ROLL-UP SUNBLIND: Option consisting of roll-up sun shades which protect the cab from UV rays and make the operator’s work more comfortable and, above all, safer. Manually operated, without guide rods and pull rod stopping with hooks.
