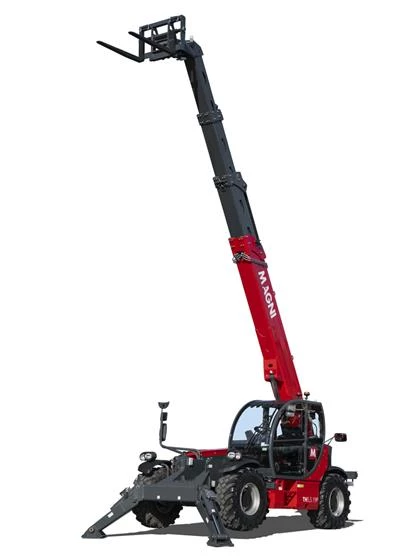

New Magni TH 5,5.19 P Telehandler for Sale The TH 5,5.19 P is a fixed telescopic handler especially suitable for demanding light industrial sites. Powered by a Deutz 74,4 Kw engine, it can safely reach a height of 18.80 m on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers. The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts. This model is equipped with the levelling system on tyres allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.
|
| Body | |
|---|---|
| Wheels | 4WD – 4WS |
| Capacity at Maximum Height | 6,600 lbs. |
| Number of Gears | 2/2 |
| Dimensions | |
|---|---|
| Length | 20’10” |
| Width | 8’1” |
| Weight | 27,950 lbs. (unladen) |
| Ground Clearance | 1’4” |
| Turning Radius | 18’9” (end of forks) |
| Lifting Height | 61’8” |
| Axle Weight | 12,550 lbs. (Front axle unladen boom retracted and lowered) 17,200 lbs. (Rear axle unladen boom retracted and lowered) |
| Engine | |
|---|---|
| Engine Make | Deutz |
| Engine Model | TCD 3,6 L4 Stage V or TCD 3,6 L4 EDG – Stage IIIA |
| Engine Type | Turbocharged direct injection diesel |
| Cylinders | 4 in line |
| Horsepower | 101.20 HP |
| Cooling | Water – intercooler |
| Max Travel Speed | 21 MPH |
| Fuel Tank Capacity | 52.8 Gallons |
| Steering | Frontal/Concentric/Crab |
| Rated RPM | 2200 RPM |
| Engine Oil Capacity | 2.4 Gallons |
| Coolant Capacity | 5.3 Gallons |
| Working Pressure | 350 bar (Load Sensing) |
| Climate control as standard | Yes |
| Gearbox | Dropbox, 2 speeds forward-reverse |
| Automatic attachment recognition | Yes |
| Drivetrain | |
|---|---|
| Axles | Axles with planetary gearboxes |
| Transmission Type | Hydrostatic |
| Front Axle | Oscillating and steering with levelling, +/-8° |
| Rear Axle | Oscillating and steering with hydraulic lock |
| Engine/Drivetrain | |
|---|---|
| Displacement | 0.95 Gallons |
| Torque | 302 lb/ft at 1600 RPM |
| Hydraulic | |
|---|---|
| Hydraulic Flow | 31.7 gpm |
| Hydraulic Oil Capacity | 24.6 Gallons |
| Hydraulic Movements Control | 1 joystick with integrated manoeuvre enable |
| Circuit Type | Load Sensing |
| Service Pump | Variable displacement |
| Controls for Boom Movements | SIL 2 electro-proportional valve |
| Operational | |
|---|---|
| Brakes | Service: Wet multi-disk on front and rear axle Parking: Hydraulic with negative action on front axle |
| Tires | 445/65 R22.5 |
| Gradeability | 55% |
| Maximum Reach | 48’4” |
| Lift Capacity | 12,100 lbs. |
| Maximum Pressure | 480 bar |
| Application | Events and Cinemas, Construction, Logistics |
| Stabilizers | Pivoting |
| Max. Boom head flow rate | 19.8 gpm |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Magni |
| MODEL | TH 5,5.19 P |
