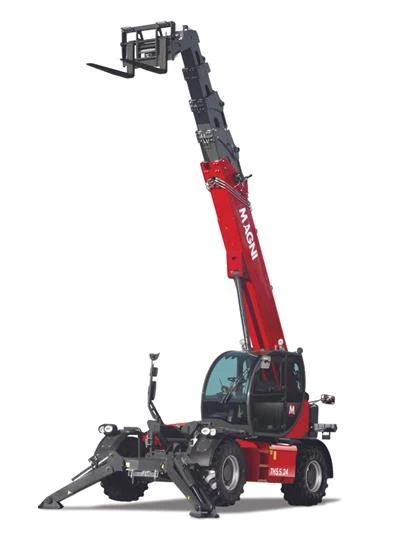

Magni TH 5,5.24

New Magni Telehandler

New Magni TH 5,5.24 Telehandler for Sale

The TH 5,5.24 is a fixed telescopic handler especially suitable for demanding working sites. It can safely reach a height of 23.90 m on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers. The hydrostatic transmission offers precision and maneuverability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts.

The 5,5.24 is equipped as standard with the side-shift system. It allows for lateral movement of the rear part of the chassis and the boom, around the longitudinal axis of the machine, correcting the position of the load without moving the unit. This system allows for a +/-5° shift which corresponds to a +/- 1,5 m movement when the boom is fully extended, whatever the attachment fitted. The TH 5,5.24 complies with EN13000 and can be equipped with a winch to work with suspended loads.

  • Available with Deutz Stage V / Stage IIIA
  • Standard pivoting stabilisers for optimised lifting capacities up to 5.5 tonnes
  • 350 bar L/S hydraulic system
  • 4WD
Body
Wheels 4WD – 4WS
Heater/Defroster/Air Conditioning Heating/Air Conditioning
Radio FM/AM radio with USB and Bluetooth connectivity
Capacity at Maximum Height 3,300 lbs.
Number of Gears 2/2
Dimensions
Length 22’10”
Width 11’1”
Weight 35,500 lbs. (unladen)
Ground Clearance 1’5”
Turning Radius 229” (end of forks)
Lifting Height 78’5”
Axle Weight 14,770 lbs. (front axle) (boom retracted and lowered)
20,723 lbs. (rear axle) (boom retracted and lowered)
Engine
Engine Make Deutz
Engine Model TCD 3,6 L4 EDG – Stage IIIA & TCD 3,6 L4 Stage V
Engine Type Turbocharged direct injection diesel
Cylinders 4 in line
Horsepower 136 HP
Cooling Water – intercooler
Max Travel Speed 25 MPH
Fuel Tank Capacity 40 Gallons
Rated RPM 2200 RPM
Engine Oil Capacity 2.4 Gallons
Coolant Capacity 5.2 Gallons
Working Pressure 350 bar (Load Sensing)
Climate control as standard Yes
Gearbox Dropbox, 2 speeds forward-reverse
Automatic attachment recognition Yes
Drivetrain
Axles Axles with planetary gearboxes
Transmission Type Hydrostatic
Front Axle Oscillating and steering with levelling, +/- 8°
Rear Axle Oscillating and steering with hydraulic lock
Engine/Drivetrain
Displacement 0.95 Gallons
Torque 368 ft lbs. at 1600 RPM
Hydraulic
Hydraulic Tank Capacity 24 Gallons
Hydraulic Flow 27.7 GPM
Hydraulic Movements Control 1 joystick with integrated manoeuvre enable
Circuit Type Load sensing
Service Pump Variable displacement
Controls for Boom Movements SIL 2 electro-proportional valve
Operational
Brakes Service: Wet multi-disk on front and rear axle
Parking: Hydraulic with negative action on front axle
Tires 445/65 R22.5
Gradeability 32%
Maximum Reach 62’7”
Lift Capacity 12,100 lbs.
Maximum Pressure 500 bar
Application Events and Cinemas, Construction, Mining & Quarrying, Logistics
Stabilizers Pivoting
Steering Type Frontal/Concentric/Crab
AdBlue Tank Capacity 2.64 Gallons
Max Mass Towable on Hook 6,834 lbs.
Max. Boom head flow rate 19.81 GPM
Electrical
Electrical System 24 V – IP67
  • Cab
    • Comfort seat with adjustable headrest
    • Adjustable steering column
    • Analogue joypad
    • Adjustable sunblind
    • Heating
    • Air conditioning
    • FM/AM radio with USB and Bluetooth connectivity
    • Ambient LED lights
    • USB Type-A and Type-C (5 V) inputs
  • Real Time Information
    • Touchscreen, 7”
    • MCTS – Magni Combi Touch System on-board software
    • Automatic RFID tools recognition system
    • LMI – Load Moment Indicator
    • LLD – Live Load Diagram
    • Onboard and remote integrated diagnostics
  • Technical Specifications
    • Q-Fit standard
    • Provision for platform
    • Advanced three-line CAN BUS system
    • Automatic levelling system for outriggers
    • Automatic front and rear wheel alignment
    • Chassis sideshift system
    • Automatic parking brake
    • Mechanical battery cut-off in engine compartment
    • Electrical system: 24 V – IP67
  • Service
    • Warranty: 24 months/2,000 hours
  • Special: For each special application Magni has the right solution, that allow you to do the job in complete safety and enhance the machine’s performances.
    • MY MAGNI: The new GPS system that can provide a total overview that enables you to map and track every movement of your fleet, and displays the most critical items on your dashboard. Technical alarms and maintenance data help to keep your fleet running and in perfect condition at all times. Whereas, safety warnings alert you of malfunctions and safety-related defects. MyMagni is available on Desktop, Apple Store and Google Play Store. For the RTH and HTH range, the first three years’ subscription is included in the price of the machine.
    • SPECIAL PAINTING (COMPLETE MACHINE): Option consisting of custom colour for the following machine parts: chassis, stabilisers and cab.
    • SPECIAL PAINTING (REPLACING ONLY MAGNI RED): Option consisting of custom colour for the following machine parts: chassis-turret and boom, and engine compartment/tank.
  • Performance: Everything revolves around excellent performances that make using a Magni a unique experience. An experience where the operator is the center, who will be able to do his best during working hours.
    • 110 V PLUG AT BOOM HEAD: Extension cable provision for connection of  110 V components on the end of the boom.
    • HYDRAULIC OIL HEATER (230V): Option consisting of a 230V plate heating element positioned on the hydraulic oil tank in order to maintain oil viscosity in very cold climates.
    • NORDIC PACKAGE: Option consisting of:
      • heater for engine coolant 230V
    • OPT-02-027
      • hydraulic oil for cold climate
    • OPT-02-025
      • led lights on top of the cab front
    • OPT-02-003
      • led lights on top of the cab rear
    • OPT-02-004
      • led lights on the boom
    • OPT-02-007
      • external battery cut-off
    • OPT-03-003
      • 110/230 V plug in the cabin
  • HYDRAULIC OIL FOR COLD CLIMATES: ISO VG 32 hydraulic oil which provides full performance in very cold climates down to -32°.
  • BIODEGRADABLE HYDRAULIC OIL: High-performance EAL, completely synthetic and zinc free for hydraulic systems. Saturated synthetic ester base. Allows for «lifetime filling» extended oil change intervals, without deposits.
  • HEATER FOR ENGINE COOLANT: Option consisting of an electric engine coolant pre-heating element, perfect for countries with cold climates.
  • Safe & Secure: To be always up to date with the different countries regulations, Magni has a solution for each need.
    • No. 4 AE77 445/65 R22.5 ROAD WHEELS: Robust, durable, safe and reliable even off-road. This Aeolus 445/65R22.5 radial agricultural tyre has a profile depth of 16.5 mm. It is the ideal solution for those who often drive on paved roads and need a more comfortable tyre for long distances. Heavy loads are no problem for the AE77, which ensures maximum performance even on tyres.
    • LIFTING CYLINDER STOP: Safety device for stopping the lifting cylinder.
    • LEFT SPARE WHEEL: Type-approved, pre-assembled left wheel composed of rim and tyre.
      • OPT-03-017 (445/65 R22,5) is compatible with TH range
    • RIGHT SPARE WHEEL: Type-approved, pre-assembled right wheel composed of rim and tyre.
      • OPT-03-016 (445/65 R22,5) is compatible with TH range
    • NO. 4 FOAM FILLED TYRES 445/65 R22,5: This tyre virtually eliminates the risk of damage and blowouts, ensuring the machine remains in full working order and guaranteeing the highest levels of safety during all demanding uses. It is filled with a polyurethane foam which undergoes a chemical reaction and solidifies in 24 hours. The result is an elastomer which will not extrude either from cuts or holes, yet allows the tyre to deflect like a corresponding air-filled model.
      • The speed of the machine will be reduced for safety reasons with this option. The following kit is a replacement for the standard wheels.
    • ANTISPARK SYSTEM (ANTISPARK + VALVE ON THE ENGINE): The engine is fitted with devices to prevent any sparks from exiting from the exhaust system, reducing greately the risk for fire and explosions.
    • EMERGENCY STOP BUTTONS: Option composed by 2 external buttons for the complete shut off of the machine mounted on the lateral sides of the chassis.
  • Comfort: Magni gives full attention to operator comfort. Small details are the proof that Magni put all its efforts into having the maximum results of care and construction precision.
    • AIR SUSPENDED SEAT WITH HEATING 24V: The air suspension seat absorbs the majority of the machine’s dynamic  oscillations during movement, making driving more comfortable. Option that increases seat comfort and user wellbeing on cold days. The seat is equipped with a 24V heating system. The heat is gradually reduced automatically, and when the lowest level is reached, the seat heating system is switched off automatically. It is also possible to disable the system manually at any time.
    • HEATED SEAT 24V: This option increases seat comfort and user well-being on cold days. The seat is equipped with a 24V heating system. The heat is gradually reduced automatically, and when the lowest level is reached, the seat heating system is switched off automatically. It is also possible to disable the system manually at any time.
    • RADIO DAB: The digital radio expands the features of the vehicle radio by incorporating a Digital Receiver which receives DAB and DAB+ terrestrial radio broadcasts. The advantages of digital radio include an enormous range of channels and impressive sound quality. As digital broadcasts are not yet available in all areas, DAB reception will automatically switch between digital and analogue reception depending on the signal strength. Integrated Bluetooth connection.
    • ROLL-UP SUNBLIND: Option consisting of roll-up sun shades which protect the cab from UV rays and make the operator’s work more comfortable and, above all, safer. Manually operated, without guide rods and pull rod stopping with hooks.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Magni
MODEL TH 5,5.24

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Magni TH 5,5.24

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Magni TH 5,5.24 Telehandler for Sale

The TH 5,5.24 is a fixed telescopic handler especially suitable for demanding working sites. It can safely reach a height of 23.90 m on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers. The hydrostatic transmission offers precision and maneuverability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts.

The 5,5.24 is equipped as standard with the side-shift system. It allows for lateral movement of the rear part of the chassis and the boom, around the longitudinal axis of the machine, correcting the position of the load without moving the unit. This system allows for a +/-5° shift which corresponds to a +/- 1,5 m movement when the boom is fully extended, whatever the attachment fitted. The TH 5,5.24 complies with EN13000 and can be equipped with a winch to work with suspended loads.

  • Available with Deutz Stage V / Stage IIIA
  • Standard pivoting stabilisers for optimised lifting capacities up to 5.5 tonnes
  • 350 bar L/S hydraulic system
  • 4WD
GENERAL INFORMATION
Manufacturer
Magni
Model Year
Model
TH 5,5.24
Condition
NEW
Body
Wheels
4WD – 4WS
Heater/Defroster/Air Conditioning
Heating/Air Conditioning
Radio
FM/AM radio with USB and Bluetooth connectivity
Capacity at Maximum Height
3,300 lbs.
Number of Gears
2/2
Dimensions
Length
22’10”
Width
11’1”
Weight
35,500 lbs. (unladen)
Ground Clearance
1’5”
Turning Radius
229” (end of forks)
Lifting Height
78’5”
Axle Weight
14,770 lbs. (front axle) (boom retracted and lowered) 20,723 lbs. (rear axle) (boom retracted and lowered)
Engine
Engine Make
Deutz
Engine Model
TCD 3,6 L4 EDG – Stage IIIA & TCD 3,6 L4 Stage V
Engine Type
Turbocharged direct injection diesel
Cylinders
4 in line
Horsepower
136 HP
Cooling
Water – intercooler
Max Travel Speed
25 MPH
Fuel Tank Capacity
40 Gallons
Rated RPM
2200 RPM
Engine Oil Capacity
2.4 Gallons
Coolant Capacity
5.2 Gallons
Working Pressure
350 bar (Load Sensing)
Climate control as standard
Yes
Gearbox
Dropbox, 2 speeds forward-reverse
Automatic attachment recognition
Yes
Drivetrain
Axles
Axles with planetary gearboxes
Transmission Type
Hydrostatic
Front Axle
Oscillating and steering with levelling, +/- 8°
Rear Axle
Oscillating and steering with hydraulic lock
Engine/Drivetrain
Displacement
0.95 Gallons
Torque
368 ft lbs. at 1600 RPM
Hydraulic
Hydraulic Tank Capacity
24 Gallons
Hydraulic Flow
27.7 GPM
Hydraulic Movements Control
1 joystick with integrated manoeuvre enable
Circuit Type
Load sensing
Service Pump
Variable displacement
Controls for Boom Movements
SIL 2 electro-proportional valve
Operational
Brakes
Service: Wet multi-disk on front and rear axle Parking: Hydraulic with negative action on front axle
Tires
445/65 R22.5
Gradeability
32%
Maximum Reach
62’7”
Lift Capacity
12,100 lbs.
Maximum Pressure
500 bar
Application
Events and Cinemas, Construction, Mining & Quarrying, Logistics
Stabilizers
Pivoting
Steering Type
Frontal/Concentric/Crab
AdBlue Tank Capacity
2.64 Gallons
Max Mass Towable on Hook
6,834 lbs.
Max. Boom head flow rate
19.81 GPM
Electrical
Electrical System
24 V – IP67
