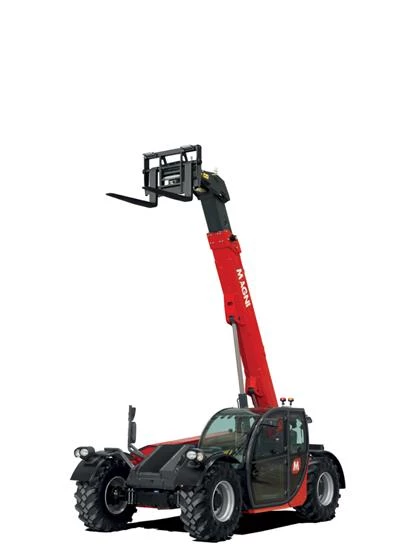

Magni TH 5.8 P Telehandler for Sale TH 5.8 P – INDUSTRIAL VERSION The TH 5.8 P is a fixed telescopic handler especially suitable for light industry. Powered by a Deutz 75 kW engine, it can safely reach a height of 7.60 m on rough terrain thanks to its 4-wheel drive. The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts. This model is equipped with the levelling system on tyres allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.
Some features:
|
| Body | |
|---|---|
| Wheels | 4WD – 4WS |
| Heater/Defroster/Air Conditioning | Heating/Air Conditioning |
| Radio | FM/AM radio with USB and Bluetooth connectivity |
| Capacity at Maximum Height | 7,700 lbs. |
| Number of Gears | 2/2 |
| Dimensions | |
|---|---|
| Length | 17’2” |
| Width | 8’2” |
| Weight | 17,600 lbs. (unladen) |
| Ground Clearance | 11” |
| Turning Radius | 197” (end of forks) |
| Lifting Height | 24’11” |
| Axle Weight | Front: 9,259 lbs. (unladen) (boom retracted and lowered) Rear: 10,582 lbs. (unladen) (boom retracted and lowered) |
| Engine | |
|---|---|
| Engine Make | Deutz |
| Engine Model | TCD 3,6 L4 EDG Stage IIIA & TCD 3,6 L4 Stage V |
| Engine Type | Turbocharged direct injection diesel |
| Cylinders | 4 in line |
| Horsepower | 101.20 HP |
| Cooling | Water – intercooler |
| Max Travel Speed | 21 MPH |
| Fuel Tank Capacity | 39 Gallons |
| Steering | Frontal/Concentric/Crab |
| Rated RPM | 2200 RPM |
| Engine Oil Capacity | 2.3 Gallons |
| Coolant Capacity | 5.28 Gallons |
| Climate control as standard | Yes |
| Gearbox | Dropbox, 2 speeds forward-reverse |
| Automatic attachment recognition | Yes |
| Drivetrain | |
|---|---|
| Axles | Axles with planetary gearboxes |
| Transmission Type | Hydrostatic |
| Front Axle | Steering |
| Rear Axle | Free oscillation |
| Engine/Drivetrain | |
|---|---|
| Displacement | .95 Gallons |
| Torque | 302 ft. lbs. at 1600 RPM |
| Hydraulic | |
|---|---|
| Hydraulic Tank Capacity | 24.56 Gallons |
| Hydraulic System | 225 bar (Load Sensing) |
| Hydraulic Flow | 23.77 GPM |
| Hydraulic Movements Control | 1 joystick with integrated manoeuvre enable |
| Circuit Type | Load sensing |
| Service Pump | Variable displacement |
| Controls for Boom Movements | SIL 2 electro-proportional valve |
| Operational | |
|---|---|
| Brakes | Service: Wet multi-dick on front and rear axle Parking: Hydraulic with negative action on front axle |
| Tires | 445/65 R22.5 |
| Gradeability | 38% |
| Maximum Reach | 14’1” |
| Lift Capacity | 11,000 lbs. |
| Maximum Pressure | 530 bar |
| Application | Construction, Mining & Quarrying, Logistics |
| Stabilizers | None |
| Pressure | 225 bar |
| AdBlue Tank Capacity | 2.64 Gallons |
| Max Mass Towable on Hook | 6,834 lbs. |
| Max. Boom head flow rate | 19.81 GPM |
| Electrical | |
|---|---|
| Electrical System | 24 V – IP67 |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Magni |
| MODEL | TH 5.8 P |
