Magni TH 6.20

New Magni Telehandler

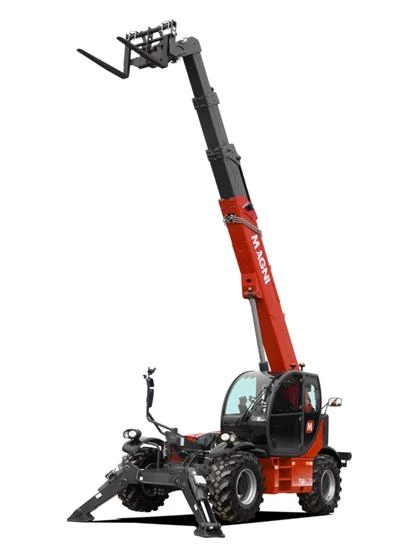

Magni TH 6.20 Telehandler for Sale

The TH 6.20 is a fixed telescopic handler especially suitable for demanding working sites. It can safely reach a height of 19,20 m on rough terrain thanks to its 4-wheel drive and the automatic levelling system, which acts on both the wheels and stabilisers. The hydrostatic transmission offers precision and manoeuvrability.

This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts. The TH 6.20 is equipped as standard with the side-shift system. It allows for lateral movement of the rear part of the chassis and the boom, around the longitudinal axis of the machine, correcting the position of the load without moving the unit. This system allows for a +/-5° shift which corresponds to a +/- 1,5 m movement when the boom is fully extended, whatever the attachment fitted.

The TH 6.20 complies with EN13000 and can be equipped with a winch to work with suspended loads.

  • Available with Deutz Stage V / Stage IIIA 100kW engines
  • Standard pivoting stabilisers for optimised lifting capacities up to 6 tonnes
  • 350 bar L/S hydraulic system
  • 4WD
Body
Wheels 4WS
Capacity at Maximum Height 4,400 lbs.
Number of Gears 2/2
Dimensions
Length 21’1”
Width 10’8”
Weight 31,300 lbs. (unladen)
Ground Clearance 1’5”
Turning Radius 214” (at forks)
Lifting Height 63’8”
Axle Weight Front: 12,345 lbs. (unladen) (boom retracted and lowered)
Rear: 18,959 lbs. (unladen) (boom retracted and lowered)
Engine
Engine Make Deutz
Engine Model TCD 3.6 L4 Stage V & TCD 3.6 L4 Stage IIIA
Engine Type Diesel direct injection turbocharged
Cylinders 4 in line
Horsepower 136 HP
Cooling Water – intercooler
Fuel Tank Capacity 39 Gallons
Steering Frontal/Concentric/Crab
Rated RPM 2200 RPM
Engine Oil Capacity 2.3 Gallons
Coolant Capacity 5.2 Gallons
Travel Speed 25 MPH
Working Pressure 350 bar
Climate control as standard YES
Gearbox Dropbox, 2 speeds forward-reverse
Automatic attachment recognition YES
Drivetrain
Axles Axles with planetary gearboxes
Transmission Type Hydrostatic
Front Axle Oscillating and steering with levelling +/- 8°
Rear Axle Oscillating and steering with hydraulic locking
Engine/Drivetrain
Displacement 220 in³
Torque 500 Nm @ 1600 RPM
Hydraulic
Hydraulic System 350 bar (Load Sensing)
Hydraulic Flow 27.73 gpm
Hydraulic Oil Capacity 37 Gallons
Hydraulic Movements Control 1 joystick Danfoss with FNR switch and dead man safety device – Management with CAN bus technology
Circuit Type Load sensing
Service Pump Variable displacement
Controls for Boom and Turret Movements SIL 2 electro-proportional valve
Operational
Brakes Service: Hydraulically operated wet multi-disk brakes on each axle
Parking: Spring applied hydraulic release Multi-disk brake (S.A.H.R.)
Tires 445/65 R22.5
Gradeability 47%
Maximum Reach 47’7”
Lift Capacity 13,200 lbs.
Maximum Pressure 500 bar
Application Oil & Gas, Construction, Mining & Quarrying, Logistics
Stabilizers Pivoting
Drawbar Pull 15.28 lbf
AdBlue Tank Capacity 2.6 Gallons
Max Mass Towable on Hook 6,834 lbs.
Max. Boom head flow rate 19.8 gpm
  • Special: For each special application Magni has the right solution, that allow you to do the job in complete safety and enhance the machine’s performances.
    • MY MAGNI: The new GPS system that can provide a total overview that enables you to map and track every movement of your fleet, and displays the most critical items on your dashboard. Technical alarms and maintenance data help to keep your fleet running and in perfect condition at all times. Whereas, safety warnings alert you of malfunctions and safety-related defects. MyMagni is available on Desktop, Apple Store and Google Play Store. For the RTH and HTH range, the first three years’ subscription is included in the price of the machine.
    • SPECIAL PAINTING (COMPLETE MACHINE): Option consisting of custom colour for the following machine parts: chassis, stabilisers and cab.
    • SPECIAL PAINTING (REPLACING ONLY MAGNI RED): Option consisting of custom colour for the following machine parts: chassis-turret and boom, and engine compartment/tank.
  • Performance: Everything revolves around excellent performances that make using a Magni a unique experience. An experience where the operator is the center, who will be able to do his best during working hours.
    • 110 V PLUG AT BOOM HEAD: Extension cable provision for connection of  110 V components on the end of the boom.
    • HYDRAULIC OIL HEATER (230V): Option consisting of a 230V plate heating element positioned on the hydraulic oil tank in order to maintain oil viscosity in very cold climates.
      • Magni recommends the use of Q8 oils and lubricants.
    • NORDIC PACKAGE: Option consisting of:
      • heater for engine coolant 230V
    • OPT-02-027
      • hydraulic oil for cold climate
    • OPT-02-025
      • led lights on top of the cab front
    • OPT-02-003
      • led lights on top of the cab rear
    • OPT-02-004
      • led lights on the boom
    • OPT-02-007
      • external battery cut-off
    • OPT-03-003
      • 110/230 V plug in the cabin
    • Magni recommends the use of Q8 oils and lubricants.
  • HYDRAULIC OIL FOR COLD CLIMATES: ISO VG 32 hydraulic oil which provides full performance in very cold climates down to -32°.
    • Magni recommends the use of Q8 oils and lubricants.
  • BIODEGRADABLE HYDRAULIC OIL: High-performance EAL, completely synthetic and zinc free for hydraulic systems. Saturated synthetic ester base. Allows for «lifetime filling» extended oil change intervals, without deposits.
    • Magni recommends the use of Q8 oils and lubricants.
  • HEATER FOR ENGINE COOLANT: Option consisting of an electric engine coolant pre-heating element, perfect for countries with cold climates.
  • Safe & Secure: To be always up to date with the different countries regulations, Magni has a solution for each need.
    • No. 4 AE77 445/65 R22.5 ROAD WHEELS: Robust, durable, safe and reliable even off-road. This Aeolus 445/65R22.5 radial agricultural tyre has a profile depth of 16.5 mm. It is the ideal solution for those who often drive on paved roads and need a more comfortable tyre for long distances. Heavy loads are no problem for the AE77, which ensures maximum performance even on tyres.
    • LIFTING CYLINDER STOP: Safety device for stopping the lifting cylinder.
    • LEFT SPARE WHEEL: Type-approved, pre-assembled left wheel composed of rim and tyre.
      • OPT-03-017 (445/65 R22,5) is compatible with TH range
    • RIGHT SPARE WHEEL: Type-approved, pre-assembled right wheel composed of rim and tyre.
      • OPT-03-016 (445/65 R22,5) is compatible with TH range
    • NO. 4 FOAM FILLED TYRES 445/65 R22,5: This tyre virtually eliminates the risk of damage and blowouts, ensuring the machine remains in full working order and guaranteeing the highest levels of safety during all demanding uses. It is filled with a polyurethane foam which undergoes a chemical reaction and solidifies in 24 hours. The result is an elastomer which will not extrude either from cuts or holes, yet allows the tyre to deflect like a corresponding air-filled model.
      • The speed of the machine will be reduced for safety reasons with this option. The following kit is a replacement for the standard wheels.
    • ANTISPARK SYSTEM (ANTISPARK + VALVE ON THE ENGINE): The engine is fitted with devices to prevent any sparks from exiting from the exhaust system, reducing greately the risk for fire and explosions.
      • Option available only for Deutz engines. Option not necessary for Stage V engines.
    • EMERGENCY STOP BUTTONS: Option composed by 2 external buttons for the complete shut off of the machine mounted on the lateral sides of the chassis.
  • Comfort: Magni gives full attention to operator comfort. Small details are the proof that Magni put all its efforts into having the maximum results of care and construction precision.
    • AIR SUSPENDED SEAT WITH HEATING 24V: The air suspension seat absorbs the majority of the machine’s dynamic  oscillations during movement, making driving more comfortable. Option that increases seat comfort and user wellbeing on cold days. The seat is equipped with a 24V heating system. The heat is gradually reduced automatically, and when the lowest level is reached, the seat heating system is switched off automatically. It is also possible to disable the system manually at any time.
    • HEATED SEAT 24V: This option increases seat comfort and user well-being on cold days. The seat is equipped with a 24V heating system. The heat is gradually reduced automatically, and when the lowest level is reached, the seat heating system is switched off automatically. It is also possible to disable the system manually at any time.
    • RADIO DAB: The digital radio expands the features of the vehicle radio by incorporating a Digital Receiver which receives DAB and DAB+ terrestrial radio broadcasts. The advantages of digital radio include an enormous range of channels and impressive sound quality. As digital broadcasts are not yet available in all areas, DAB reception will automatically switch between digital and analogue reception depending on the signal strength. Integrated Bluetooth connection.
    • ROLL-UP SUNBLIND: Option consisting of roll-up sun shades which protect the cab from UV rays and make the operator’s work more comfortable and, above all, safer. Manually operated, without guide rods and pull rod stopping with hooks.
