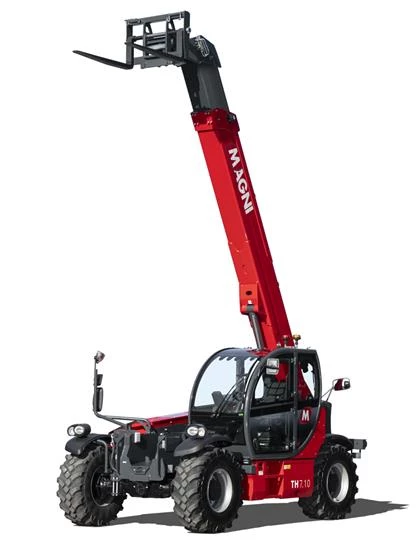

Magni TH 7.10 Telehandler for Sale The TH 7.10 is a fixed telescopic handler especially suitable for light industry. Powered by a Deutz 55 kW , it can safely reach a height of 9.50 m on rough terrain thanks to its 4-wheel drive. The hydrostatic transmission offers precision and manoeuvrability. This machine is compatible with a wide range of attachments. It is equipped with the R.F.ID system which allows for automatic recognition of attachments and the creation of the relative load charts. This model is equipped with the levelling system on tyres allowing the operator to adjust the inclination of the machine. Thus, the entire load diagram is available for any type of operation, even when under normal conditions the slope of the terrain could affect lifting performance.
|
| Body | |
|---|---|
| Wheels | 4WS |
| Capacity at Maximum Height | 3,200 lbs. |
| Number of Gears | 2/2 |
| Dimensions | |
|---|---|
| Length | 19’11” |
| Width | 8’2” |
| Weight | 26,235 lbs. (unladen) |
| Ground Clearance | 1’4” |
| Turning Radius | 208” (at forks) |
| Lifting Height | 31’2” |
| Axle Weight | Front: 8,598 lbs. (unladen) (boom retracted and lowered) Rear: 17,636 lbs. (unladen) (boom retracted and lowered) |
| Engine | |
|---|---|
| Engine Make | Deutz |
| Engine Model | TCD 3.6 L4 Stage V & TCD 3.6 L4 EDG Stage IIIA |
| Engine Type | Turbocharged direct injection diesel |
| Cylinders | 4 in line |
| Horsepower | 75.30 HP |
| Cooling | Water – intercooler |
| Fuel Tank Capacity | 38 Gallons |
| Steering | Frontal/Concentric/Crab |
| Rated RPM | 2200 RPM |
| Engine Oil Capacity | 2.3 Gallons |
| Coolant Capacity | 5.2 Gallons |
| Travel Speed | 16 MPH |
| Working Pressure | 350 bar |
| Climate control as standard | YES |
| Gearbox | Dropbox, 2 speeds forward-reverse |
| Reversable Fan Drive | NO |
| Automatic attachment recognition | YES |
| Drivetrain | |
|---|---|
| Axles | Axles with planetary gearboxes |
| Transmission Type | Hydrostatic |
| Front Axle | Oscillating and steering with levelling +/- 8° |
| Rear Axle | Oscillating and steering with hydraulic locking |
| Engine/Drivetrain | |
|---|---|
| Displacement | 220 in³ |
| Torque | 405 Nm @ 1300 RPM (TCD 3.6 L4 Stage V) & 390 Nm @ 1300 RPM (TCD 3.6 L4 EDG Stage IIIA) |
| Hydraulic | |
|---|---|
| Hydraulic System | 350 bar (Load Sensing) |
| Hydraulic Flow | 23.77 gpm |
| Hydraulic Oil Capacity | 23 Gallons |
| Hydraulic Movements Control | 1 joystick Danfoss with FNR switch and dead man safety device – Management with CAN bus technology |
| Circuit Type | Load sensing |
| Service Pump | Variable displacement |
| Controls for Boom and Turret Movements | SIL 2 electro-proportional valve |
| Operational | |
|---|---|
| Brakes | Service: Hydraulically operated wet multi-disk brakes on each axle Parking: Spring applied hydraulic release Multi-disk brake (S.A.H.R.) |
| Tires | 445/65 R22.5 |
| Gradeability | 59% |
| Maximum Reach | 19’4” |
| Lift Capacity | 15,400 lbs. |
| Maximum Pressure | 500 bar |
| Application | Oil & Gas, Construction, Mining & Quarrying, Logistics |
| Stabilizers | None |
| Drawbar Pull | 16.18 lbf |
| Max Mass Towable on Hook | 6,834 lbs. |
| Max. Boom head flow rate | 19.8 gpm |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Magni |
| MODEL | TH 7.10 |
