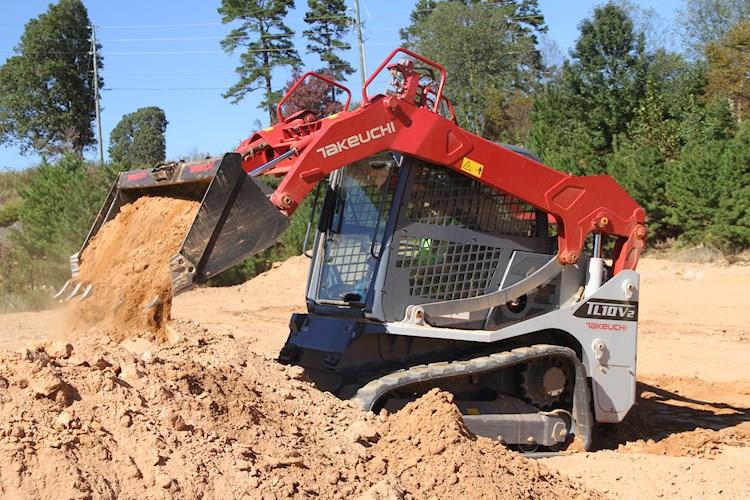

New Takeuchi TL10V2 Track Loader for Sale

The TL10V2 features a vertical lift loader arrangement and it now meets EPA Final Tier 4 emissions standards.  The cab is completely redsigned and enlarged and now features a smooth low effort overhead door design for improved entry and egress. A quiet track design with flotation pads reduces vibration, noise levels, and improves ride quality.

  • Performance
    • Final Tier 4 Engine w/ DOC+DPF
    • Vertical Lift Loader Arrangement
    • Improved ROC
    • Quiet Track Design w/ Flotation Tread
  • Durability
    • Oversized Pins and Bushings
    • Heavy Duty Lift Cylinders w/ Cushsion
    • High Capacity Cooling Module
    • Welded Frame w. Multiple Cross Members
  • Operator Comfort
    • 5.7" Color Multi-Information Display
    • Updated Cabin
    • Enhanced Overhead Door Performance
    • Improved Sound Suppression
  • Service and Uptime
    • Updated Tilt-Up Cab
    • Improved Battery Access
    • Increased Fuel Capacity
    • Centralized Filter Location
  •  Takeuchi Fleet Management (TFM)
    • 2 Year Standard Equipment
    • Remote Diagnostics
    • Proactive Maintenance
    • Control Costs
Dimensions
Height 7’5.4”
Ground Clearance 12.6”
Length w/ Bucket 12’1”
Dump Height 7’11.9” (fully raised)
Height to Bucket Pin 10’4.8”
Rollback @ Ground 30.0 degrees
Dump Angle 40.0 degrees (fully raised)
Angle Departure 30 degrees
Reach @ Max Height 3’1.4” (fully raised)
Clearance Radius 5’ (Front wo/bucket)
5’5.2” (rear)
Engine
Engine Make Kubota
Engine Model V3307-CR-TE4B
Engine Type EPA Final Tier 4
Cylinders 4
Horsepower 74.3 hp
Cooling 15.9 qt
Displacement 203 cu in
Torque 195 ft-lb @ 1,500 rpm
Fuel Consumption 2.7 gal/hr (65% of full load)
Fuel Tank Capacity 21.5 gal
Voltage 12 volts
Amps 60 amps
Rated RPM 2,600 rpm
Lubrication System 11.8 qt
Drivetrain
Track Width 15.7”
Travel Speed - Forward Low: 4.8 mph
High: 7.0 mph
Track Length 4’7.9” (ground contact)
Track Type Permanently sealed rollers with precision metal face seals
Track Rollers 5 per side
Ground Pressure 4.9 psi (canopy)
5.1 psi (cab)
Traction Drive Hydrostatic drive w/double reduction planetary final drive
Brake Type Parking: spring applied, hydraulically released
Hydraulic
Hydraulic Capacity 9.5 gal (reservoir)
17.2 gal (system)
Hydraulic Flow 18.8 gal/min
32.8 gal/min (optional high flow)
Hydraulic Pressure 3,481 psi
Operational
Weight 9,810 lbs. (canopy)
10,130 lbs. (cab)
Tipping Load 7,205 lbs.
Bucket Breakout Force 6,520 lbs.
Breakout Force 5,400 lbs. (life arm)
Cycles Raise-Full Load: 4.3 seconds
Lower-No Load: 3.0 seconds
Dump-Full Load: 3.1 seconds
Curl-No Load: 2.2 seconds
Traction Force 9,730 lbs.
ROC 2,522 lbs. (SAE J818 standard 35% tipping load)
Operating Load 3,600 lbs. (50% of Tipping load)
  • ENGINE
    • EPA Final Tier 4 compliant
    • Turbocharged engine w/ DOC/DPF after treatment
    • Automatic fuel-bleed system
    • Extended life coolant
    • Dual element air filter
  • ELECTRICAL
    • Electronic engine monitoring system
    • Rear View Camera
    • Fuel and coolant temperature gauge
    • 12 volt system w/ 60 amp alternator
    • LED worklights, front and rear
    • Engine preheat
    • Hour meter
    • Back-up alarm
  • UNDERCARRIAGE and FRAME
    • Permanently sealed track rollers w/ metal face seals
    • Welded track frame w/ two cross members
    • 2-speed travel
    • 15.7" quiet ride rubber track
    • Grease type track adjuster
  • HYDRAULIC
    • Cushioned boom cylinders
    • Automatic Power Control (APC)
    • Boom float with detent
    • Pilot proportional hydraulic controls
    • Pressure relieving flat faced coupler body
    • 14-pin connector with push button control
    • Hydraulic self leveling, up only
    • Available high flow auxiliary hydraulics, 32.8 gpm
    • Available ride control
    • Available control pattern change valve
  • WORKING EQUIPMENT
    • Vertical lift boom design
    • Mechanical quick coupler
    • Available Hydraulic quick coupler
    • Available 76" HD smooth lip dirt bucket (20.3 cu ft)
    • Available 76" HD dirt bucket with teeth (20.3 cu ft)
    • Available 7' Six way dozer blade
    • Available HD 48" pallet forks and frame
  • OPERATOR'S STATION
    • Tilt-up operator station
    • Pilot operated controls
    • High back, adjustable suspension seat
    • Rear pivoting seat bar w/ integrated arm rests
    • Retractable seat belt
    • ROPS / FOPS structure
    • Available pressurized cab w/ roll-up door, air conditioning, heat, defrost, wiper, and AM / FM / Mp3 radio w/ NOAA weatherband
    • Available 3" seat belt
    • Available 3 point seat belt
  • TAKEUCHI FLEET MANAGEMENT (TFM)
    • Minimize Downtime
    • Remote Diagnostics
    • Utilization Tracking
    • Proactive Maintenance
    • Control Costs
  • Operator’s Station
    • Pressurized Cab with Roll-up Door, A/C, Heat, Defrost and Front Wiper, and AM/FM/MP3 Radio with NOAA Weatherband
    • Retractable 3” Seat Belt
    • 3 Point Retractable Seat Belt
  • Hydraulic & Working Equipment
    • Canopy Hydraulic Quick Coupler
    • High Flow Auxiliary Hydraulics 32.8 gpm
    • Ride Control
    • Pattern Change Valve (ISO or H)
