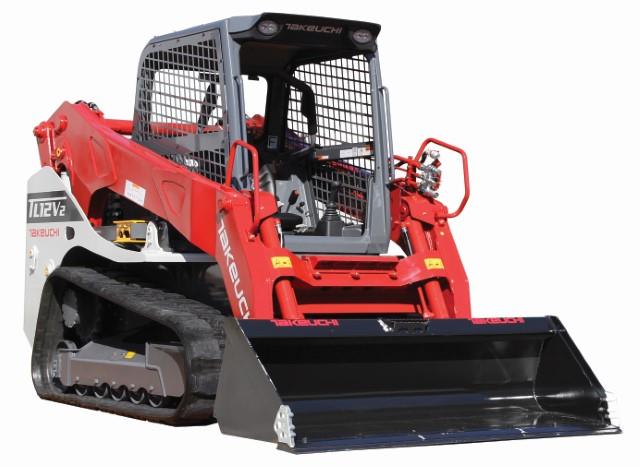

New Takeuchi TL12V2 Track Loader for Sale The TL12V2 features a vertical lift loader arrangement and sets another benchmark for compact track loaders by delivering one of the most capable and innovative machines available to the market today. The cab has been completely redesigned and enlarged and now features a smooth low effort overhead door design for improved entry and egress. A quiet track design with flotation pads reduces vibration, noise levels, and improves ride quality.
|
| Dimensions | |
|---|---|
| Height | 7’9.7” |
| Ground Clearance | 12.2” |
| Length w/ Bucket | 13’3.3” |
| Dump Height | 8’1” (fully raised) |
| Height to Bucket Pin | 10’10” |
| Rollback @ Ground | 32.0 degrees |
| Dump Angle | 46.8 degrees (fully raised) |
| Angle Departure | 29 degrees |
| Reach @ Max Height | 3’0.4” (fully raised) |
| Width wo/Bucket | 6’5.2” 80” (recommended width) |
| Clearance Radius | 5’3.4” (Front wo/bucket) 6’1” (rear) |
| Engine | |
|---|---|
| Engine Make | Kubota |
| Engine Model | V3800-TIF4B |
| Engine Type | EPA Final Tier 4 |
| Cylinders | 4 |
| Horsepower | 111.3 hp |
| Cooling | 4.8 gal |
| Displacement | 230 cu in |
| Torque | 284 ft-lb |
| Fuel Consumption | 3.8 gal/hr (65% of full load) |
| Fuel Tank Capacity | 32.7 gal |
| Voltage | 12 volts |
| Amps | 80 amps |
| Rated RPM | 2,400 rpm |
| Lubrication System | 13.9 qt |
| Drivetrain | |
|---|---|
| Track Width | 17.7” |
| Travel Speed - Forward | Low: 5.0 mph High: 7.8 mph |
| Track Length | 67.6” (ground contact) |
| Track Type | Permanently sealed rollers with precision metal face seals |
| Track Rollers | 6 per side |
| Ground Pressure | 4.7 psi (canopy) 4.9 psi (cab) |
| Traction Drive | Hydrostatic drive w/double reduction planetary final drive |
| Brake Type | Parking: spring applied, hydraulically released |
| Hydraulic | |
|---|---|
| Hydraulic Capacity | 13.2 gal (reservoir) 24.8 gal (system) |
| Hydraulic Flow | 23.2 gal/min 40.4 gal/min (Optional High Flow) 23.2 gal/min (Optional 2nd circuit) |
| Hydraulic Pressure | 3,481 psi |
| Operational | |
|---|---|
| Weight | 12,705 lbs. (canopy) 13,040 lbs. (cab) |
| Tipping Load | 11,737 lbs. |
| Bucket Capacity | 24 cu ft (SAE Heaped) |
| Bucket Breakout Force | 7,874 lbs. |
| Breakout Force | 7,109 lbs. (life arm) |
| Cycles | Raise-Full Load: 4.0 seconds Lower-No Load: 2.9 seconds Dump-Full Load: 3.1 seconds Curl-No Load: 2.0 seconds |
| Traction Force | 14,006 lbs. |
| ROC | 4,107 lbs. (SAE J818 standard 35% tipping load) |
| Operating Load | 5,868 lbs. (50% of Tipping load) |
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.
| Main Technical Specifications | |
|---|---|
| MAKE | Takeuchi |
| MODEL | TL12V2 |
