Takeuchi TL6R

Takeuchi TL6R

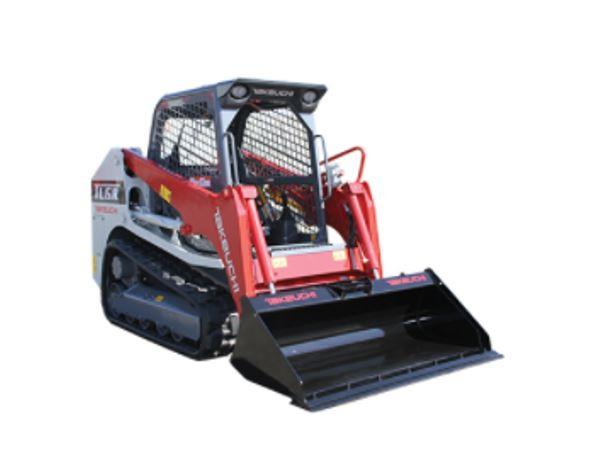

New Takeuchi TL6R Track Loader for Sale

The TL6R features a radial lift loader design and meets all current emission standards. With a height of 6 ft 5.8 in and a width of just over 5 ft the dimensions of the TL6R allow it to excel on job sites that may have height and width restrictions. This track loader comes with a newly designed cabin with an overhead 5.7” color multi-informational display and backlit rocker switches that control a variety of machine functions. The TL6R comes standard with a quiet track design with flotation pads that reduces vibration, noise levels, and improves ride quality.
Dimensions
Length 8’9.9” (machine)
10’11.1” (transport)
Height 6’5.8” (transport)
Ground Clearance 9.1”
Dump Height 7’5.6” (fully raised)
Height to Bucket Pin 9’6.4”
Dump Reach 1’10” (fully raised)
Rollback @ Ground 31°
Dump Angle 38°
Angle Departure 30°
Width wo/Bucket 5’0.2”
Clearance Radius 6’10.5” (Circle w/Bucket)
4’6.9” (Circle wo/Bucket)
4’11.8” (Circle Rear)
Engine
Engine Make Kubota
Engine Model V2403-CR-TE4B
Horsepower 65.2 HP
Cooling 18.0 qt Capacity
Displacement 146.4 cu in.
Torque 144.3 ft-lb
Fuel Tank Capacity 20.1 gallons
Lubrication System 7.6 qt
Drivetrain
Track Width 12.6”
Travel Speed - Forward Low: 4.0 mph
High: 6.0 mph
Track Length 4’7” (ground contact)
Ground Pressure 4.8 psi (canopy)
4.9 psi (cab)
Hydraulic
Hydraulic Capacity 7.7 gallons (reservoir)
11.9 gallons (system)
Hydraulic Flow 17.8 gpm (Auxiliary Flow-Primary Circuit)
Hydraulic Pressure 2,988 psi
Operational
Weight 7,480 lbs. (canopy)
7,780 lbs. (cab)
Tipping Load 5,269 lbs.
Bucket Breakout Force 5,930 lbs.
Breakout Force 4,860 lbs. (lift arm)
Traction Force 8,655 lbs.
ROC 1,841 lbs. (SAE J818 standard 35% tipping load)
  • Engine
    • U.S. EPA Final Tier 4 Emission Compliant
    • Turbocharged
    • DOC+DPF Exhaust After Treatment
    • Active Power Control Power Management System
    • Automatic Fuel Bleed System
    • High Capacity Side-by-Side Radiator and Hydraulic Oil Cooler Mounted on Swing Out Frame
    • Dual Element Air Filter
  • Electrical
    • 5.7" Color Multi-Informational Display with Rear Camera
    • Sealed Rocker Switches
    • 12 volt System with 60 amp Alternator
    • Work Lights, Front and Rear
    • Engine Preheat
    • Hour Meter
    • Back-up Alarm
    • Horn
  • Undercarriage and Frame
    • Permanently Sealed Track Rollers with Metal Face Seals
    • Fully Welded Frame with Integrated Cross Members
    • Front and Rear Tie-Down and Lift Points
    • Two-Speed Travel w/Auto Shift Down
    • 12.6 Quiet Track Design
  • Operator's Station
    • Tilt-up Operator's Station
    • Deluxe Adjustable Suspension Seat
    • Rear Pivoting Seat Bar with Integrated Arm Rest
    • ROPS/FOPS Structure
    • Retractable 2" Seat Belt
    • Wide Angle Rear View Mirror
    • Pressurized Cab with Swing Out Door, A/C, Heat Defrost and Front Wiper, AM/FM/MP3 Radio with NOAA Weaterband (cab only)
  • Hydraulic & Working Equipment
    • Cushioned Boom Cylinders
    • Boom Float with Detent
    • Hydraulic Pilot Controls
    • Proportional Auxiliary Controls with Detent
    • Pressure Relieving Flat Faced Coupler Body
    • 14-Pin Connector with Push Button Control
    • Hydraulic Self Leveling
    • Mechanical Quick Coupler (Canopy only)
    • Hydraulic Quick Coupler (Cab Only)
    • Standard Auxiliary Hydraulics 17.8 gpm
  • Operator’s Station
    • Retractable 3” Seat Belt
    • 3 Point Retractable Seat Belt
    • Pressurized Cab with Swing Out Door, A/C, Heat, Defrost and Front Wiper, AM/FM/MP3 Radio with NOAA Weatherband
  • Hydraulic & Working Equipment
    • Canopy Hydraulic Quick Coupler

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Takeuchi
MODEL TL6R

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Takeuchi TL6R

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Takeuchi TL6R Track Loader for Sale

The TL6R features a radial lift loader design and meets all current emission standards. With a height of 6 ft 5.8 in and a width of just over 5 ft the dimensions of the TL6R allow it to excel on job sites that may have height and width restrictions. This track loader comes with a newly designed cabin with an overhead 5.7” color multi-informational display and backlit rocker switches that control a variety of machine functions. The TL6R comes standard with a quiet track design with flotation pads that reduces vibration, noise levels, and improves ride quality.
GENERAL INFORMATION
Manufacturer
Takeuchi
Model Year
Model
TL6R
Condition
NEW
Dimensions
Length
8’9.9” (machine) 10’11.1” (transport)
Height
6’5.8” (transport)
Ground Clearance
9.1”
Dump Height
7’5.6” (fully raised)
Height to Bucket Pin
9’6.4”
Dump Reach
1’10” (fully raised)
Rollback @ Ground
31°
Dump Angle
38°
Angle Departure
30°
Width wo/Bucket
5’0.2”
Clearance Radius
6’10.5” (Circle w/Bucket) 4’6.9” (Circle wo/Bucket) 4’11.8” (Circle Rear)
Engine
Engine Make
Kubota
Engine Model
V2403-CR-TE4B
Horsepower
65.2 HP
Cooling
18.0 qt Capacity
Displacement
146.4 cu in.
Torque
144.3 ft-lb
Fuel Tank Capacity
20.1 gallons
Lubrication System
7.6 qt
Drivetrain
Track Width
12.6”
Travel Speed - Forward
Low: 4.0 mph High: 6.0 mph
Track Length
4’7” (ground contact)
Ground Pressure
4.8 psi (canopy) 4.9 psi (cab)
Hydraulic
Hydraulic Capacity
7.7 gallons (reservoir) 11.9 gallons (system)
Hydraulic Flow
17.8 gpm (Auxiliary Flow-Primary Circuit)
Hydraulic Pressure
2,988 psi
Operational
Weight
7,480 lbs. (canopy) 7,780 lbs. (cab)
Tipping Load
5,269 lbs.
Bucket Breakout Force
5,930 lbs.
Breakout Force
4,860 lbs. (lift arm)
Traction Force
8,655 lbs.
ROC
1,841 lbs. (SAE J818 standard 35% tipping load)
