New Trail King SA Sliding Axle Trailer for Sale

Trail King offers a complete line of open deck and materials hauling trailers for the construction, agriculture, transportation, and specialized hauling markets. With load capacities ranging from 12,000-1,000,000 pounds, there's a Trail King trailer perfectly suited to meet your hauling needs.

The Advantage Plus! Sliding Axle (SA) trailer features a low load angle, greater payload capacity and stability, more corrosion protection of critical components, and smother, more precise operation.

  • Models
    • TK80SA
    • TK110SA
Body
Upper Deck Length 9' 10" upper deck
Paint/Finish Paint- Trail King 2-part polyurethane
Main Deck Length 38'1"
Frame Type Perimeter Frame Gooseneck Design
4 beam main frame construction
Dimensions
Width 102"
Height 49" loaded 5th wheel height
Deck Height 37½" loaded deck height with 17.5 tires
42" loaded deck height with 22.5 tires
Deck Capacity TK80SA: 80,000 lbs. uniform; 50,000 lbs. in 10 ft.
TK110SA: 110,000 lbs. uniform; 70,000 lbs. in 10 ft.
Operational
Axles Hydraulic sliding axles
25,000 lb. axles (5/8" wall): TK80SA-2; TK110SA-3
Brakes 4S2M ABS Brakes
Dump Angle 15° dump angle
Winch 80' winch cable with locking safety hook
Load Angle 6½° loading angle
Swing Clearance 16" kingpin setting with 80" swing clearance
Axle Spacing 50"
Electrical
Lighting 3rd tail light package
LED lights, 50 state legal
Mid-turn signal clearance lights
Rubber mounted sealed lights with sealed harness system

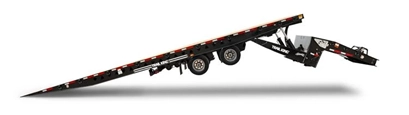

  • Tilting main deck - forms a ramp to upper deck
  • Air Ride suspension
  • Air Ride
  • No traveling hydraulic lines for sliding axle operation
  • Side by side 2-stage cylinder, closed in travel position
  • Air and electrical lines contained in protective track
  • Single recessed winch roller at front of deck
  • Skid plate on slope of upper deck
  • Push bottom hydraulic valve controls
  • Central located lube system
  • 3" I-beam cross members, 12" on center (TK80SA) 8" on center (TK110SA)
  • Triangle cutouts
  • Automatic slack adjusters
  • One-piece oil seals
  • Pro Tork axle nuts
  • Key hole slots on 24" centers in inner and outer beams
  • 3/8" high-strength smooth approach plate
  • 4-way slots on approach plate
  • 2 side access tool boxes at front of upper deck
  • Electrical system per DOT regulations
  • Mud flaps
  • Red & white conspicuity markings
  • Top access toolbox with gas shocks & lighting
  • Fair lead roller
  • Full Function Remote
  • Second winch roller
  • Stake pockets

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.

New Equipment Sales only available in assigned territories where Kirby-Smith Machinery, Inc. is a licensed distributor. Not all manufacturer's brands available at each location. Please contact your local Kirby-Smith branch if you have questions regarding availability.

View Brochure

Main Technical Specifications
MAKE Trail King
MODEL SA Sliding Axle

Want to rent it?

Do you want to know if renting makes more economical sense?
Call us and find out today.

Trail King SA Sliding Axle

print
6715 W. Reno
Oklahoma City, OK 73127 Phone: 888.861.0219
www.kirby-smith.com
CUSTOMER
DATE
PRICE
SALESPERSON

New Trail King SA Sliding Axle Trailer for Sale

Trail King offers a complete line of open deck and materials hauling trailers for the construction, agriculture, transportation, and specialized hauling markets. With load capacities ranging from 12,000-1,000,000 pounds, there's a Trail King trailer perfectly suited to meet your hauling needs.

The Advantage Plus! Sliding Axle (SA) trailer features a low load angle, greater payload capacity and stability, more corrosion protection of critical components, and smother, more precise operation.

  • Models
    • TK80SA
    • TK110SA
GENERAL INFORMATION
Manufacturer
Trail King
Model Year
Model
SA Sliding Axle
Condition
NEW
Body
Upper Deck Length
9' 10" upper deck
Paint/Finish
Paint- Trail King 2-part polyurethane
Main Deck Length
38'1"
Frame Type
Perimeter Frame Gooseneck Design 4 beam main frame construction
Dimensions
Width
102"
Height
49" loaded 5th wheel height
Deck Height
37½" loaded deck height with 17.5 tires 42" loaded deck height with 22.5 tires
Deck Capacity
TK80SA: 80,000 lbs. uniform; 50,000 lbs. in 10 ft. TK110SA: 110,000 lbs. uniform; 70,000 lbs. in 10 ft.
Operational
Axles
Hydraulic sliding axles 25,000 lb. axles (5/8" wall): TK80SA-2; TK110SA-3
Brakes
4S2M ABS Brakes
Dump Angle
15° dump angle
Winch
80' winch cable with locking safety hook
Load Angle
6½° loading angle
Swing Clearance
16" kingpin setting with 80" swing clearance
Axle Spacing
50"
Electrical
Lighting
3rd tail light package LED lights, 50 state legal Mid-turn signal clearance lights Rubber mounted sealed lights with sealed harness system
