Vacall AE Hydro/Air Excavators

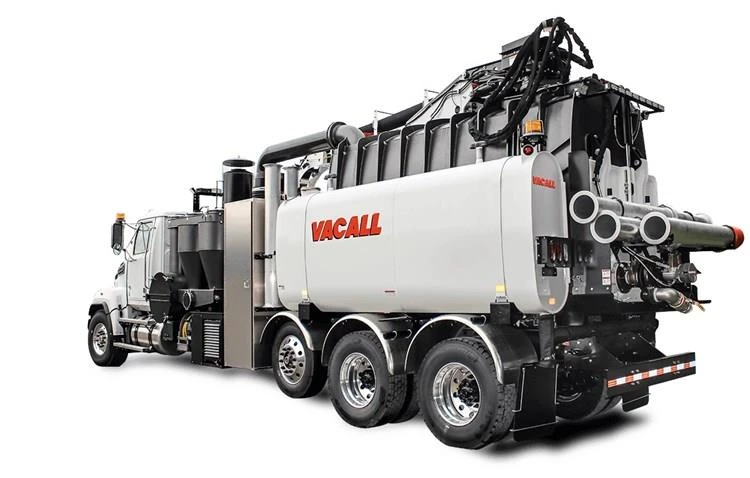

New Side of Vacall Vacuum Truck for Sale

New Vacall AE Hydro/Air Excavators for Sale

Industry leading hydro and air excavation

Vacall hydro and air excavators provide superior vacuum forces and water and air pressure, making them the industry leader. AllExcavate and AllExcavate2 machines have just one engine, reducing fuel consumption emissions, noise and maintenance.

Choose the AllExcavate or AllExcavate2 to efficiently excavate around water lines, sewer lines and other underground utilities. An optional cold-weather package includes heated cabinetry that encloses the boiler, warming the water for hydro excavation when temperatures drop below freezing.

AllExcavate Hydro Excavators reflect the superior water pressure and vacuum forces that have established Vacall as an industry leader, efficiently excavating around water lines, sewer lines and other underground utilities.

Models

  • AE 811
  • AE 1013
  • AE 1213


Blower/Fan
Drive OMSI air-shift transfer case, power frame-mounted
Blower Roots; Model 1125 DVJ Tri-Nado; Type: Tri-Lobe Direct Drive
Blower Speed 2000 RPM
Blower Vacuum 27” HG (685.8mm)
Blower Airflow 5,800 CFM (164m³/min) free air
Debris Tank/Hopper
Dump Angle 42°
Construction Oval shape, cylindrical sides, wrap-around gussets plus rear-mount boom
Tailgate Heavy-duty Rear, full 90°, hydraulically-opening, with dual positive-locking reverse angle wedges
Volumetric Capacity AE 811: 8 yard³
AE 1213: 12 yard³
Sides .250” (6.4mm) thick steel
Lifting Hydraulic three-stage telescopic cylinder
Debris Body Safety Prop Single prop manually-operated, located on hoist frame near rear axles.
Tailgate Safety Prop Located outside, beside tailgate driver side.
Controls
All Smart Flow Control Enclosed cabinet control box containing: CAN bus boom control joystick recessed for protection. LCD color display to increase/decrease engine RPM, water pressure, vacuum. Emergency stop button, water pump hourmeter & blower hourmeter
Wired Pendant Flex Pro wired pendant with 12 proportional push buttons; 3-position rotary switch, latching emergency stop
Water System
Water Tank Capacity AE 811: 1,100 Gallons
AE 1213: 1,300 Gallons
Pump Type Hydraulically powered triplex plunger
Filters In-line suction strainer on pump inlet
Water Tank Construction High-quality fully welded aluminum
Water Pump 0-25 GPM @ 3,000 PSI
Spray Wand Handgun with nozzle & extension
Hose Reel .5” diameter hose, 50’ capacity spring rewind
75’ high-pressure hose on self-winding reel
Hose/Vacuum
Hose 8” bore X 72” long vertical
Hose Construction Smooth bore NR/SBR liner
Systems
Excavation System Hydro Excavation
Dimensions
Overall Length AE 1013: 36’7”
AE 1213: 38’7”
Overall Width 8’8”
Overall Height 13’6”
Clear CA Required AE 1013: 217.5”
AE 1213: 241.5”
Hydraulic
Hydraulic Reservoir 36 gallons
Hydraulic Pump Pressure-compensated piston pump with ORS fittings
Return Filter 10 Micron
Boom
Rotation 7’9” extending boom 330° rotation
Electrical
Electrical 12 volt CAN bus system with sealed connectors

POWER SYSTEM

  • Range of power module packages based on customer need
  • Positive displacement blowers from 16 inches to 27 inches Hg of vacuum power
  • Jetting systems complement the cleaning power with capacity ranges from 50 to 120 gpm and pressures to 3000 psi
  • AllSmartFlow CANbus smart controls system standard
  • Single engine operation reduces fuel consumption emissions, noise and maintenance

BOOM/HOSE

  • Boom extends 8’6” with 330° rotation
  • Rear-mounted boom front loads debris
  • Choose from three boom and hose options to accommodate your preference
  • Heavy-duty full-length rubber hose is durable and flexible with gum rubber lining from turret mounted on the debris tank to the pick-up point
  • Steel tube-in-tube boom and intake connected to an identical rubber hose elbow that leads to the pick-up point
  • Original steel tube-in-tube design with steel elbow boom and intake tube – the industry standard for strength and durability

DEBRIS BODY

  • Oval shape with cylindrical sides for extra strength and efficient material dumping
  • Optional Supreme Finish galvanized debris tank available with lifetime warranty
  • Multi-stage vacuum filtration system has simplified design to reduce maintenance, extend performance and increase working life
  • Standard durable powder coat finish
  • 10 or 12 yard3 capacities
  • 8 yard3 capacities available on 811 models

WATER SYSTEM

  • Hydraulically driven, variable-speed system has digital control to vary water volume and capacity output
  • Available variable water pump produces up to 24.5 gpm with up to 3,000 psi
  • Water heater
  • System powers a wand, delivering a high-pressure stream to break up material
  • Self-wind reel has 75 feet of high-pressure hose
  • Optional hose reel has up to 350 feet of high-pressure hose

WATER STORAGE TANKS

  • Water tanks have lifetime warranty
  • Fabricated with high quality aluminum for extra strength
  • Available in 1,000 and 1,300 gallon capacities
  • 1,100 gallon capacity available on 811 models
  • Equipped with interior baffles, water tanks are mounted above the rear fenders to avoid damage from road debris
  • Tank position creates positive head pressure to the water pump inlet

AIR

  • AllExcavate2 Combination Hydro/Air Excavator
  • Air compressor produces 185 CFM at 110 or 115 psi
  • Dual air water separator and deflector diffusion technology separates fine particles
  • Industry leading micronic diffusion filter system protects the blower

GENERAL SPECIFICATIONS

  • Drive - Split shaft PTO with direct drive to blower
  • Silencer - Inlet & outlet silencers based on blower requirements
  • Wireless Pendant - Controls all boom functions, engine RPM, vacuum relief, emergency stop, water pump speed
  • Sludge Pump
  • Brass Slam Valve
  • Full Load Indicator
  • Hydraulic Debris Body Vibrator
  • Anti-Siphon Fill
  • Hydrant Fill Hose
  • Platforms & Steps
  • Work Lights
  • Strobe Lights
  • Tool Boxes
  • 705,000 BTU Boiler
  • 940,000 BTU Boiler
  • Vacuum Tube Racks
  • Galvanized Debris Body
